Introduction
The Linkly Local REST API enables communication between a POS and payment app running on the same mobile payments device.

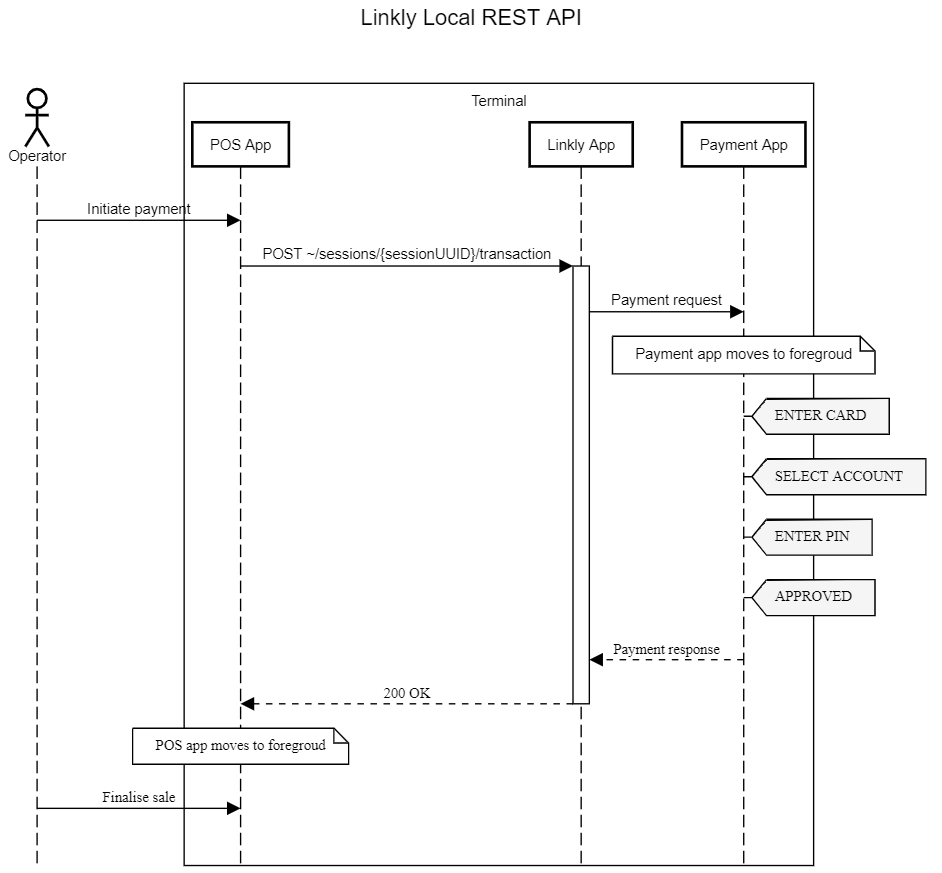

Payment flow
- POS POSTS HTTP payment request to local loopback address, and waits for the response
- Linkly app initates payment and payment app UI moves to the foreground
- User completes the payment and payment app UI closes
- POS app receives HTTP payment result, and POS app UI moves to the foreground
Start Developing
Technical Requirements
- All communications over HTTP. No requirement for HTTPS since both POS and payment app are on the same device
- Connect with the loopback IP address. No DNS required
- Session connectivity:
- A unique session ID must be randomly generated using standard UUID v4 generating algorithms for each and every session made by the POS, even if a previous session was not successful. Duplicate session IDs will be rejected. The only exception is when requesting 'TransactionStatus', in which case the session ID of the desired transaction must be supplied.
TBD - POS development will require Linkly Connect app and Linkly payment app emulator. TODO: embed description of how to download and setup APK's - TODO: embed links for Android sample code via Github
Please direct any questions on the Linkly Cloud REST API to [email protected]
API Requests
Request URI
The request URI is made up of 4 parts; the base endpoint, a SessionId
, the type of request to make, and the async
URI parameter.
- A
SessionId
is a valid UUID which identifies the current POS request. This must be generated by the POS using standard GUID/UUID generating libraries, i.e. this must be a standard, globally unique UUID value for each and every Transaction Request. - The request type portion of the path needs to be one of the following strings:
Request Types |
---|
transaction |
logon |
settlement |
status |
querycard |
configuremerchant |
reprintreceipt |
sendkey |
- An API Request object should be constructed and POSTed to the appropriate API endpoint.
Error Recovery
Error recovery only applies to the Transaction request and simply refers to performing a GET request to the API to request the Transaction Status, using the same SessionId
as the original Transaction Request.
The POS must enter error recovery if, on POSTing a Transaction Request:
- the POS receives an HTTP 500-599 server error, HTTP 408 timeout, or any connection error, whilst waiting for a POSTed Transaction Response.
In recovery the POS should use the same 'SessionId' as the original transaction to periodically call Transaction Status until one of the following HTTP Status codes is received:
- 200 OK - this response should include an APIResponse
- 400 Invalid Request - this is an error condition indicating that the Transaction Status request was invalid. Do not retry, log it and return an error to the operator (the transaction result cannot be determined).
- 401 Unauthorised - try getting a new token and then continue. If this persists, abort (the password may have changed).
- 404 Not Found - Either the Transaction Status URI used was incorrect (check configuration) or the transaction was not submitted successfully and can be resubmitted safely.
Any other HTTP status code (202, 408, 500-599) should mean the POS continues to retry.
Example
- You POST a transaction to
https://127.0.0.1/v1/sessions/c98433543a0d43eeba8f5876607f1df0/transaction
- You receive an HTTP error 408 indicating that the request has timed out. This does not specify whether or not the transaction succeeded.
- You enter recovery mode and start polling GET
https://127.0.0.1/v1/sessions/c98433543a0d43eeba8f5876607f1df0/transaction
every few seconds. - You receive an HTTP 202 each time indicating the transaction is still in progress.
- Eventually you receive an HTTP 200 with a valid Transaction Response. The Transaction Response object (not the HTTP Status code) indicates the financial success of the Transaction Request.
The error recovery can end when either:
- The POS receives an HTTP 200 "OK" with a valid Transaction Response,
- The POS receives an HTTP 404 "Resource not found" response, which (assuming the correct GET request URI is used) indicates that the original transaction was not processed, or
- The POS receives an HTTP 400 "Invalid request" response, indicating an invalid POS request which should be investigated and resolved.
All other HTTP response codes indicate that, in one way or another, the POS should keep trying to GET the Transaction Response, as outlined below.
Sync Mode Recovery

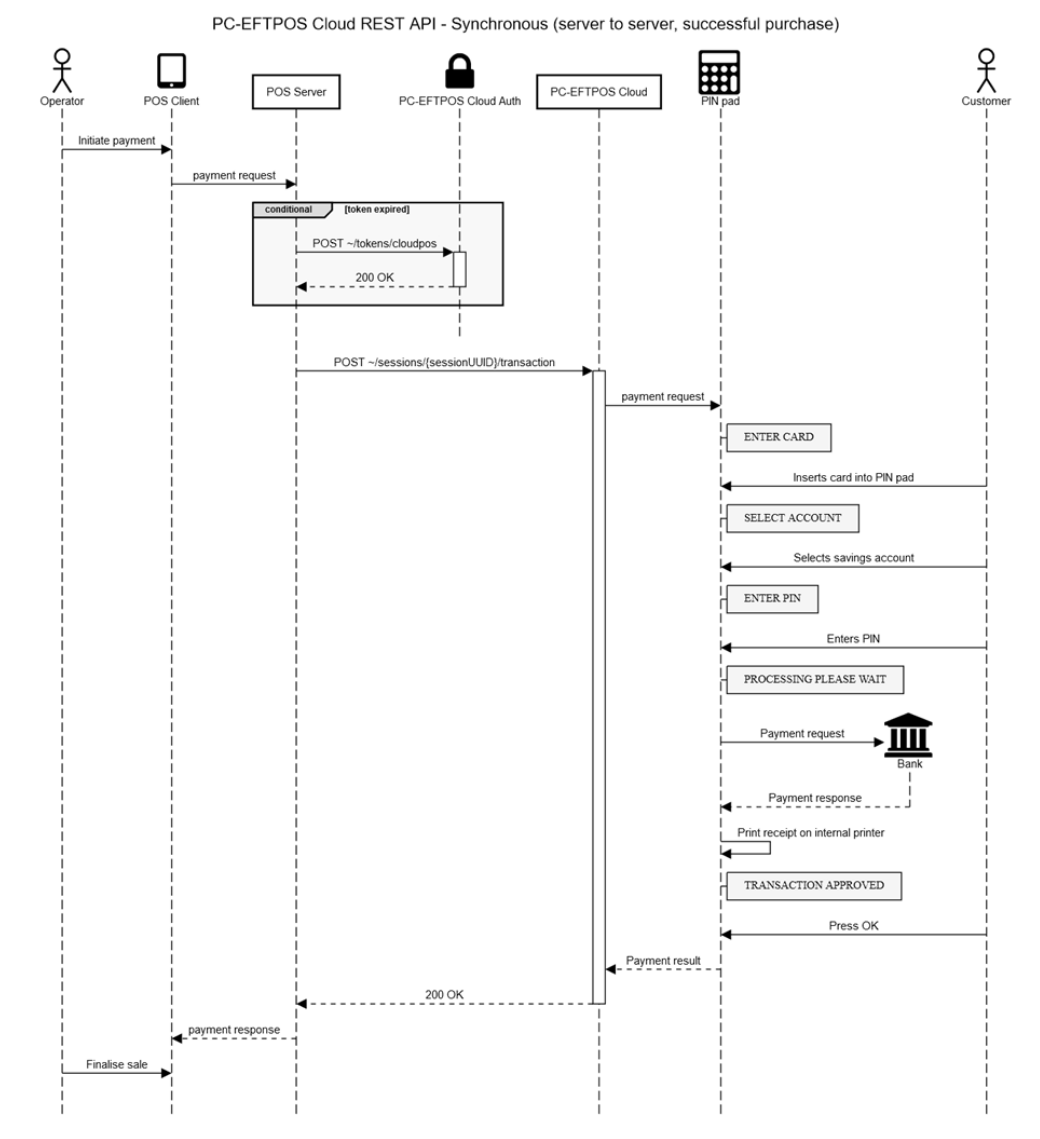

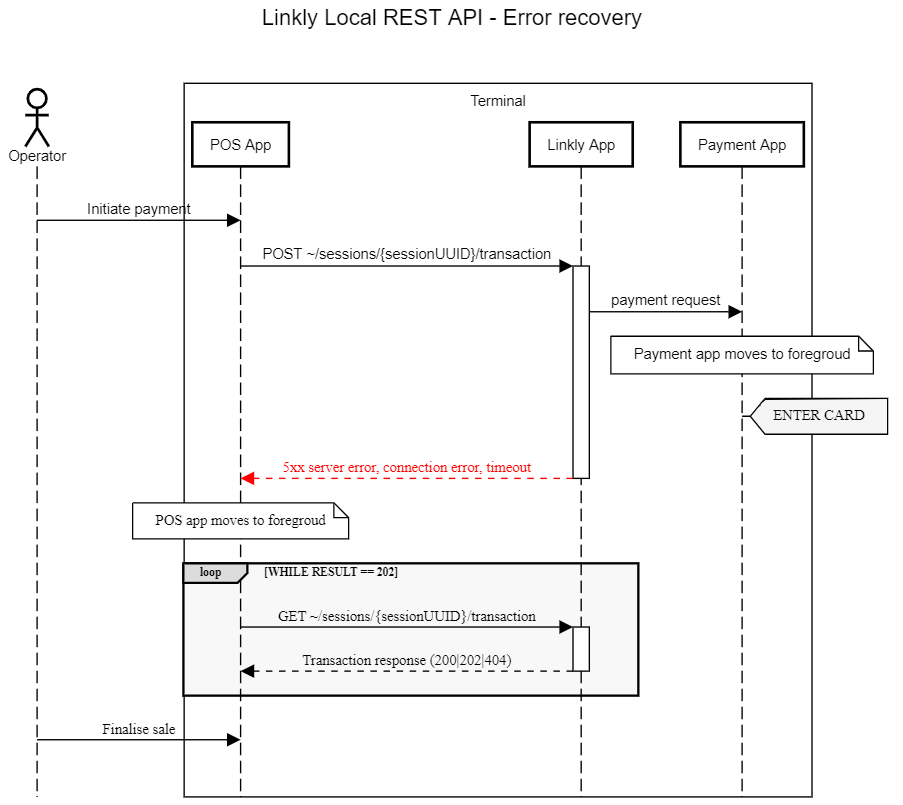

The error recovery sequence diagrams for both client-to-cloud and server-to-cloud synchronous mode of communication is shown below.
HTTP Response codes returned from Transaction Status.
HTTP Code | Description | Required action |
---|---|---|
200 | OK - This will be accompanied by a valid response. The 'success' property in the Response object indicates the financial status of the transaction. | Inspect the response to check the result of the financial transaction (e.g. Approved, Declined, Approve with signature, etc.) |
202 | Accepted - The original transaction has been received but is not yet complete. Response body will be null. | The POS should retry the GET request every 1-2 seconds for up to 3 minutes, or until another HTTP code is received. |
400 | Invalid request - This error does NOT indicate success or failure of the original transaction, but rather that the GET request is badly formed. It is likely that the session Id is not a valid UUID. | Do NOT retry this GET request, as it is incorrectly formed. |
401 | Unauthorised - The token supplied is invalid. This error does NOT indicate success or failure of the original transaction. | The POS should refresh the token and attempt the GET request again. |
404 | Resource not found - Either the GET request URI is incorrect (the endpoint was not found) or the session Id requested was not found, hence the original transaction was not submitted successfully. | So long as the Transaction Status URI is configured correctly, the POS can safely retry the original transaction with the same (or new) SessionId. |
408 | Request Timeout - This should be rare: a transient error has occurred, possibly due to server overloading. | The POS should retry the GET request every few seconds for up to 3 minutes, or until another code is received. Please use exponential backoff to avoid overloading the server further. |
500-599 | A server error has occurred. | The POS should continue to perform the GET request using exponential backoff to avoid overloading the server. |
Core Payments
Overview
The Core Payments API offers a simple entry point for POS developers to send card payment transactions to Linkly supported PIN pads.
Minimum Requirements
Below are the minimum requirements for a POS system to be considered for accreditation with the Linkly Core Payments API
Transaction Types
Management of merchant/bank functions
Transactional Scenarios
Error Handling
Purchase
The purchase transaction type allows the merchant to perform a sale, it uses the transaction request format.
All refunds in the Core Payments API need to be matched to an original purchase. The POS will achieve this by storing the contents of the RFN PAD tag returned in the purchase response and, if a refund for this purchase is required, sending the contents of this field in the refund request.
The 'REF' tag represents the transaction reference from the payment host. It will be printed on the receipt. The POS should record the 'REF' tag against the sale in the POS database to allow a transaction to be looked up from the receipt contents.
Purchase Request
Example Transaction Request object
{
"Request": {
"Merchant": "00",
"TxnType": "P",
"AmtPurchase": 100,
"TxnRef": "1234567890",
"CurrencyCode": "AUD",
"CutReceipt": "0",
"ReceiptAutoPrint": "0",
"Application": "00",
"PurchaseAnalysisData": {
"OPR": "00766|test",
"AMT": "0042000",
"PCM": "0000"
},
"Basket": {
"Id": "t39kq18134553",
"Amt": 2145,
"Tax": 200,
"Dis": 50,
"Sur": 0,
"Items": [
{
"Id": "t39kq002",
"Sku": "k24086723",
"Qty": 2,
"Amt": 2145,
"tax": 200,
"Dis": 50,
"Name": "XData USB Drive"
}
]
}
}
}
Below are the fields from the transaction request that must be set for a purchase transaction.
Field Name | Type | Required value | Notes |
---|---|---|---|
Merchant | string(2) | Variable | Two Digit Merchant Code. Defaults to '00' (EFTPOS) |
TxnType | string(1) | 'P' | Purchase |
AmtPurchase | number | Variable | Left zero filled, amount of sale in cents. |
TxnRef | string(16) | Variable | The reference number to attach to the transaction. This will appear on the receipt. |
CurrencyCode | string(3) | Variable | Code to indicate requested currency. e.g. 'AUD' |
CutReceipt | string(1) | Variable | Indicates whether Linkly should cut receipts. Defaults to '0' (DontCut) |
ReceiptAutoPrint | string(1) | Variable | Indicates if the POS is to receive receipt events. Default '0'. |
Application | string(2) | '00' | Instructs Linkly to perform a card payment |
PurchaseAnalysisData | object | Variable | Extended fields. See PurchaseAnalysisData note below. |
Basket | object | Variable | See basket section for details |
PurchaseAnalysisData
Tag | Name | Type | Notes | Example |
---|---|---|---|---|
OPR | OperatorReference | string(128) | POS operator name and id. Format: ID|Name | {"OPR": "66|test" } |
AMT | TotalAmount | string(9) | Total amount of the entire sale in cents, not Tender amount | {"AMT": "20000" } $200.00 total sale |
PCM | POSCapabilitiesMatrix | string(128) | POS Capabilities Matrix. First byte = POS can scan Barcode | {"PCM": "0000"} |
Purchase Response
Example purchase Response object
{
"SessionId": "dd250a0c81c202b66220d7379b338b8f",
"ResponseType": "transaction",
"Response": {
"TxnType": "P",
"Merchant": "00",
"CardType": "AMEX CARD ",
"CardName": "05",
"RRN": "123456789012",
"DateSettlement": "2018-07-31T00:00:00",
"AmtCash": 0,
"AmtPurchase": 100,
"AmtTip": 0,
"AuthCode": 123456,
"TxnRef": "1234567890 ",
"Pan": "37601234567890 ",
"DateExpiry": "4909",
"Track2": "37601234567890=0949?,,S, YES, 05?????? ",
"AccountType": "2",
"TxnFlags": {
"Offline": "1",
"ReceiptPrinted": "0",
"CardEntry": "S",
"CommsMethod": "0",
"Currency": "0",
"PayPass": "0",
"UndefinedFlag6": "0",
"UndefinedFlag7": "0"
},
"BalanceReceived": false,
"AvailableBalance": 0,
"ClearedFundsBalance": 0,
"Success": true,
"ResponseCode": "00",
"ResponseText": "APPROVED ",
"Date": "2018-07-31T16:14:40",
"Catid": "12345678",
"Caid": "0987654321 ",
"Stan": 0,
"PurchaseAnalysisData": {
"RFN": "klujhadsc9ph87asd",
"REF": "12345",
"HRC": "ERR1",
"HRT": "INVALID CARD"
},
"Receipts": [
{
"Type": "C",
"ReceiptText": [
"------------------------",
" *** TRAINING MODE *** ",
" TEST MERCHANT TITLE ",
" TEST MERCHANT NAME ",
" LINE2 ",
" ",
"00:38:34 16/10/20 ",
" ",
"SAVINGS ACCOUNT ",
" ",
"PURCHASE AUD $2.00",
" --------",
"TOTAL AUD $2.00",
" ",
"APPROVED - 00 ",
" ",
"PLEASE RETAIN AS RECORD ",
" OF PURCHASE ",
"------------------------"
],
"IsPrePrint": false
}
]
}
}
The purchase response is in the format of the Transaction Response object, see the Transaction section for a detailed breakdown. The below tags are part of the PurchaseAnalysisData object in the response and are of critical importance to the core payments transactions.
PurchaseAnalysisData
Tag | Name | Type | Notes | Example |
---|---|---|---|---|
RFN | Reference Number | string(128) | Transaction Reference Number to be used in a refund, can contain additional information | {"RFN":"klujhadsc9ph87asd"} |
REF | Host reference Number | string(32) | Reference number to the sale from the provider systems, printed on receipt | {"REF":"12345"} |
HRC | Host Response Code | string(64) | Response code from the payment processor | {"HRC":"ERR1"} |
HRT | Host Response Text | string(999) | Response text from the payment processor | {"HRT":"INVALID CARD"} |
Refund
A refund Transaction type allows the merchant to undo a sale; it uses the transaction request format. The POS must ensure that the correct 'RFN' Tag is sent when performing a refund.
Refund Request
{
"Request": {
"Merchant": "00",
"TxnType": "R",
"AmtPurchase": 100,
"TxnRef": "1234567890",
"CurrencyCode": "AUD",
"CutReceipt": "0",
"ReceiptAutoPrint": "0",
"App": "00",
"PurchaseAnalysisData": {
"RFN": "klujhadsc9ph87asd",
"OPR": "00766|test",
"AMT": "0042000",
"PCM": "0000"
}
}
}
Field Name | Type | Required value | Notes |
---|---|---|---|
Merchant | string(2) | Variable | Two Digit Merchant Code. Defaults to '00' (EFTPOS) |
TxnType | string(1) | 'R' | Purchase |
AmtPurchase | number | Variable | Left zero filled, amount of sale in cents. |
TxnRef | string(16) | Variable | The reference number to attach to the transaction. This will appear on the receipt. |
CurrencyCode | string(3) | Variable | Code to indicate requested currency. e.g. 'AUD' |
CutReceipt | string(1) | Variable | Indicates whether Linkly should cut receipts. Defaults to '0' (DontCut) |
ReceiptAutoPrint | string(1) | Variable | Indicates if the POS is to receive Receipt Events, default '0'. |
Application | string(2) | '00' | Instructs Linkly to perform a card payment |
PurchaseAnalysisData | object | Variable | Extended fields. See PurchaseAnalysisData note below. |
Basket | object | Variable | See basket section for details |
PurchaseAnalysisData
Tag | Name | Type | Notes | Example |
---|---|---|---|---|
RFN | Reference Number | string(128) | Reference Number from purchase request this refund is for | {"RFN":"klujhadsc9ph87asd"} |
OPR | OperatorReference | string(128) | POS operator name and id. Format: ID|Name | {"OPR": "66|test" } |
AMT | TotalAmount | string(9) | Total amount of the entire sale in cents, not Tender amount | {"AMT": "20000" } $200.00 total sale |
PCM | POSCapabilitiesMatrix | string(128) | POS Capabilities Matrix. First byte = POS can scan Barcode | {"PCM": "0000"} |
Refund Response
The refund response is in the format of the Transaction Response object, see the Transaction section for a detailed breakdown.
PurchaseAnalysisData
Tag | Name | Type | Notes | Example |
---|---|---|---|---|
REF | Host reference Number | string(128) | Reference number to the sale from the provider systems, printed on receipt | {"REF":"12345"} |
HRC | Host Response Code | string(64) | Response code from the payment processor | {"HRC":"ERR1"} |
HRT | Host Response Text | string(999) | Response text from the payment processor | {"HRT":"INVALID CARD"} |
Management Functions
The management functions allow the merchant to perform utility functions in addition to sales. The minimum requirements for these are; Reprint Receipt and Transaction Status
Reprint Receipt
The reprint receipt function allows for the retrieval/reprint of a financial receipt. The 'Merchant' field must be set to a unique 2-character code to specify the sale processor, this is returned in the purchase/refund response.
Reprint Receipt Request
Example reprint receipt request object
{
"Request": {
"Merchant": "99",
"ReceiptAutoPrint": "0",
"ReprintType": "2"
}
}
Field Name | Type | Required value | Notes |
---|---|---|---|
Merchant | string(2) | Variable | Two Digit Merchant Code. Defaults to '00' (EFTPOS) |
CutReceipt | string(1) | Variable | Indicates whether Linkly should cut receipts. Defaults to '0' (DontCut) |
ReceiptAutoPrint | string(1) | Variable | Indicates if the POS is to receive Receipt Events, default '0'. Linkly recommends the POS receive receipt events and handle them accordingly |
Reprint Receipt Response
See Reprint Receipt Response Object for response format
Transaction Status
This function returns the last transaction event processed by Linkly. This function can be called by a POS to determine whether a transaction was successful or not following a power failure whilst an EFTPOS transaction was in progress, this is part of the error handling scenarios.
See Transaction Status for request/response format
Transactional Scenarios
Partial/Split Payments
Partial and split payments must be handled by the POS. When sending a purchase request, the POS must set the 'AMT' Tag with the total amount of the entire sale. The 'AmtPurchase' field should be set to the actual tender amount; in most cases, these fields will be equal. When receiving a response, the POS will receive the 'AmtPurchase' field set to the amount the sale was processed for. If the POS receives an amount less than what was sent in the response, it must continue to make payments until the entire tender is paid for.
Example 1
- POS sets AMT PurchaseAnalysisData tag to 4000 - Total sale for $40.00
- POS sets AmtPurchase = 2000 – Tender amount set to $20.00
- Process sale
- POS receives AmtPurchase = 2000 – Payment completed for $20.00
- POS sets AmtPurchase = 2000 and AMT PurchaseAnalysisData tag to 4000 – Create another sale for $20.00
- Process Sale
- POS receives AmtPurchase = 2000 – Payment completed for $20.00
- Tender complete
Example 2
- POS sets AMT PurchaseAnalysisData tag to 2000 = Total Sale for $20.00
- POS sets AmtPurchase = 2000 = Tender amount set to $20.00
- Process sale
- POS receives AmtPurchase = 1000 - Payment completed for $10.00
- POS sets AmtPurchase = 1000 and AMT PurchaseAnalysisData tag to 2000 – Create another sale for $10.00
- Process Sale
- POS receives AmtPurchase = 1000 – payment completed for $10.00
- Tender complete
Error Handling
The POS should implement error handling as outlined by the Error recovery section.
Linkly Basket
The "basket" in the Transaction Request contains information about items in the transaction.
Basket Command Header Fields
{
"Id": "t39kq18134553",
"Amt": 17890,
"Tax": 1790,
"Dis": 1000,
"Sur": 358,
"Items": [...]
}
The basket header contains meta information about the basket, along with the id for the basket which is needed when sending a transaction with basket data, or when changing the basket.
Name | Required | Description | Format |
---|---|---|---|
Id | Y | A unique ID for the basket | String, max 32 |
Amt | Y | Total price for the basket, in cents, including tax and discount, but excluding surcharge | Integer |
Tax | Total tax for the basket, in cents | Integer | |
Dis | Total discount for the basket, in cents | Integer | |
Sur | Surcharge (e.g. for Credit Card), in cents | Integer | |
Items | Y | Array of basket items | JSON array |
Basket Command Item Fields
Example basket item data object
{
"Id": "t39kq002",
"Sku": "k24086723",
"Qty": 2,
"Amt": 2145,
"Tax": 200,
"Dis": 50,
"Gtin": "831664397578",
"Name": "XData USB Drive",
"Desc": "24GB XData USB Drive, Red/Black",
"Srl": "xd546467",
"Img": "http://www.xdata.com/products/images/usb24_rb_1.jpg",
"Link": "http://www.xdata.com/products.php&pid=usb24_rb",
"Tag": "usb drive,storage"
}
The basket items are required to have at least an id, sku, quantity, and price of the item included in the item data.
Other fields can be used as desired by vendors.
Name | Required | Description | Format |
---|---|---|---|
Id | Y | A unique ID for the item | String, max 32 |
Sku | Y | Merchant assigned SKU for the item | String, max 16 |
Qty | Y | Quantity (number of units) | Integer |
Amt | Y | Individual unit price for the item, in cents, including tax and discount | Integer |
Tax | Individual unit tax for the item, in cents | Integer | |
Dis | Individual unit discount for the item, in cents | Integer | |
Ean | The EAN (European Article Number) for the item | String, max 16 | |
Upc | The UPC (Universal Product Code) for the item | String, max 16 | |
Gtin | The GTIN (Global Trade Item Number) for the item | String, max 16 | |
Name | A short name for the item | String, max 24 | |
Desc | A longer description for the item | String, max 255 | |
Srl | Serial code, or other identifying code, for the item | String, max 16 | |
Img | URL to an image for the item | String | |
Link | URL to a product page for the item | String | |
Tag | Comma separated category or type information for the item (e.g. "food, confectionery”) | String, max 64 |
Basket Command Extended Item Fields
{
"Id": "t39kq001",
"Sku": "s63787452",
"Qty": 1,
"Amt": 1995,
"Weight": "2kg"
}
In additional to the required and optional fields, an item may also include one or more extended fields for use by specific third parties. Extended fields are simply included along with the standard fields for the item.
The example opposite includes "weight”, with a value of "2kg”, as an extended field.
See the appropriate Linkly Third Party Processor (TPP) specification for a list of supported extended fields.
Basket Command Full Example
Full Basket Example
{
"Id": "t39kq18134553",
"Amt": 18700,
"Tax": 1760,
"Dis": 650,
"Sur": 374,
"Items": [
{
"Id": "t39kq002",
"Sku": "k24086723",
"Qty": 2,
"Amt": 2145,
"Tax": 200,
"Dis": 50,
"Name": "XData USB Drive"
},
{
"Id": "t39kq003",
"Sku": "s23475697",
"Qty": 1,
"Amt": 8910,
"Tax": 810,
"Name": "MSoft OSuite",
"Srl": "ms7843k346j23"
},
{
"Id": "t39kq004",
"Sku": "m47060855",
"Qty": 5,
"Amt": 1100,
"Tax": 110,
"Dis": 110,
"Name": "A4 Notepad"
}
]
}
The example opposite basket contains 3 items:
2 XData USB Drives, at $21.45 each, which includes tax of $2.00 and a discount of $0.50
1 MSoft OSuite, with a serial number, at $89.10, which includes tax of $8.10 and no discount
5 A4 Notepads, at $11.00 each, which includes tax of $1.10 and a discount of $1.10
The total value of the basket is $187.00, with a total tax of $17.60 and total discount of $6.50. Paying by credit card also incurred a surcharge of $3.74 (2%).
Surcharging
The Linkly surcharging solution is driven by the Linkly components and the payment terminal, this removes any need for the POS application to perform any complex card inspection or store and managed surcharging rates. Merchants can use the Linkly Merchant Portal to set their desired surcharging rates.
If a surcharge is applied:
- the SUR PAD tag will be present in the Transaction Response, and will contain the value of the surcharge applied in cents.
- the AMT PAD tag will be present in the Transaction Response, and will contain the total value of the sale (e.g. purchase amount + surcharge + tip)
Food & Beverage
Linkly has created a number of payment features that help merchants make the most of their payment solution, these help POS providers quickly add important features to their food and beverage solution.
Tipping
The Linkly tipping feature supports the ability for customers to collect a tip on the terminal as part of the payment transaction.
Linkly's components will manage the configuration and the terminal is used to interact with the cardholder to streamline the process of tipping.
To enable tipping, configure the tipping values in the Linkly Merchant Portal, and set EnableTip
to '1' in the Transaction Request.
If a tip is applied:
- the AmtTip field will be populated in the Transaction Response, and will contain the value of the tip applied in cents.
- the AMT PAD tag will be present in the Transaction Response, and will contain the total value of the sale (e.g. purchase amount + surcharge + tip)
This feature supports the following tip entry methods:
- Manual amount entry where the cardholder selects the amount to tip
- Configurable percentages for automatic tip addition, e.g. 5%, 10%, 15%
To provide POS partners with the flexibility to use their own tipping solutions Linkly supports the following requests as part of the transaction method.
The TIP tag can be used by the POS to send the TIP value to the terminal for inclusion on the customer copy of the eftpos receipt. This is only required if the POS wants to implement its own tipping solution. For all other instances, nothing is needed from the POS to enable tipping for a merchant.
API Specification
All Requests and Responses are wrapped in ApiRequest and ApiResponse JSON objects respectively.
ApiRequest
Example APIRequest object
{
"Request":{
"SomeKey":"somevalue",
"SomeKey":"somevalue",
....
}
}
A request to the Linkly Cloud REST API is made up of two JSON objects a "Request" and a "Notification" (optional for sync mode, mandatory for async mode).
The "Request" object will contain all the information a POS will send to make a request, be it a transaction or a settlement.
The "Notification" object contains information about the POS' web server that is capable of receiving responses from the Linkly Cloud REST API about its current requests. Most requests will generate display responses and receipt responses in addition to the original request response that the POS is expected to handle. All these will be in JSON wrapped in a "Response" object and contain a "SessionId".
GET and POST Requests
All requests are made using POST, except for Transaction, which also has GET functionality, for Transaction Status.
When using GET on Transaction the POS must send the SessionId of the Transaction they want retrieved, the POS will either receive a 202 "in progress" or a 200 OK with the Transaction Response in the body.
ApiResponse
Example APIResponse object
{
"SessionId": "a1b2c3d4e5",
"ResponseType": "transaction",
"Response": {
"SomeKey": "somevalue",
"SomeOtherKey": "somevalue"
}
}
An ApiResponse is made up of a "Response" object which contains the information relating to the original request such as a Transaction.
It also contains a "SessionId", a valid UUID which forms the unique session identifier for this request.
Finally the Linkly Cloud REST API also sends a ResponseType field which contains an identifier for this response.
It's important to understand what the Cloud API response means, and that there are at least two layers to responses.
HTTP Response
The REST API is a layer on top of back-end EFT services. The API has its own response codes to indicate error conditions in the API itself which have no relation to anything financial or transaction-related. It does this with HTTP Status Codes. There are two "non-error" HTTP status codes, HTTP 200 and HTTP 202.
HTTP 200 OK
This indicates that the request was able to be processed successfully, but does not say what the result of that request is.
Example 1:
You POST a synchronous Transaction to the API for a purchase of $10. The API responds with HTTP 200 and an ApiResponse. The HTTP 200 response code indicates that it was able to pass on the Transaction Request to the EFT Client, and got a Transaction Response. It does not mean the transaction was successful. In order to check if the transaction was successful (i.e. money was actually transferred) you need to check the Response's Success flag.
Example 2:
You POST a Logon request to the API, but the PIN pad is offline. The API responds with HTTP 200, indicating that it was able to relay the request to the EFT Client, and the EFT Client gave a valid response back. Again, you need to inspect the Response to determine that the PIN pad is offline.
Example 3:
After a power failure, your POS enters error recovery to determine the status of the last transaction it sent. Upon sending the GET Transaction Status request, the API responds with an HTTP 404 Unauthorised response. This is no reflection on the original transaction, but instead the POS refreshes its token and retries the request. This time it receives an HTTP 200, which once again needs to be inspected to find out if the transaction was actually successful.
HTTP 202 Accepted
This indicates that the request has been accepted by the API and it is currently processing that request. It does not indicate that the Transaction Request has necessarily been "accepted" yet by either the EFT Client, PIN pad, or bank. You should wait for the Transaction Response and determine the result from that.
Other HTTP status codes
All other status codes besides 200 and 202 indicate that the API was unable to fulfill the REST request, not whether or not the transaction succeeded (although you can sometimes determine unsuccessful requests based on HTTP status code).
** Example 1:**
You POST a synchronous Transaction to the API for a purchase of $10. The API responds with HTTP 500. This indicates that there's something wrong with either the API itself or infrastructure around the API. Examples may include: internet outages, server overloading, etc. The POS should enter error recovery to find out whether it was successful.
** Example 2:**
You POST a synchronous Transaction to the API for a purchase of $10. The API responds with HTTP 401. This indicates that the authorisation token is not valid and needs to be renewed. In this case it can be safely assumed that the transaction was not successful yet, but the POS should renew the token and try again.
EFT Response
The next layer is the EFT Response, which is found inside the API Response. The EFT Response is received in one of only 3 ways:
- As a notification message posted to the POS's appropriate endpoint, if supplied
- In the body of the response to an HTTP POST request (e.g. Transaction, Status or Logon), but only where the HTTP Status code is 200.
- In the body of the response to an HTTP GET transaction status request.
Methods
Transaction
Transaction Request
# replace <<token>> with the token returned from your auth request
curl -v "https://127.0.0.1/v1/sessions/$(uuidgen)/transaction?async=false" \
-X POST \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <<token>>' \
-H 'Accept: application/json' \
-d '{
"Request": {
"TxnType": "P",
"AmtPurchase": 100,
"TxnRef": "0123456789ABCDEF"
}
}'
var token = "<<token>>"; // replace <<token>> with the token returned from your auth request
var requestContent = new
{
Request = new
{
TxnType = "P",
AmtPurchase = 100,
TxnRef = DateTime.Now.ToString("yyMMddhhmmssffff"),
}
};
var request = new HttpRequestMessage(HttpMethod.Post, $"https://127.0.0.1/v1/sessions/{Guid.NewGuid().ToString()}/transaction?async=false")
{
Content = new StringContent(Newtonsoft.Json.JsonConvert.SerializeObject(requestContent), System.Text.Encoding.UTF8, "application/json")
};
request.Headers.Authorization = new AuthenticationHeaderValue("Bearer", token);
var httpClient = new HttpClient(); // Note: in production don't create multiple HttpClient instances. Share one single instance.
HttpResponseMessage httpResponse = await httpClient.SendAsync(request);
string responseContent = await httpResponse.Content.ReadAsStringAsync();
import datetime
import uuid
import requests; # http://python-requests.org
token = '<<token>>' # replace <<token>> with the token returned from your auth request
request_payload = {
"Request": {
"TxnType": "P",
"AmtPurchase": 100,
"TxnRef": datetime.datetime.now().strftime('%y%m%d%H%M%S%f')[:-4]
}
}
uri = 'https://127.0.0.1/v1/sessions/' + str(uuid.uuid4()) + '/transaction?async=false'
headers = {'Authorization': 'Bearer ' + token}
response = requests.post(uri, json=request_payload, headers=headers)
response_payload = response.json()
Send a Transaction Request (e.g. purchase, refund, cash out).
URI Path
POST ~/v1/sessions/<<sessionid>>/transaction&async=false
Headers
Parameter | Value |
---|---|
Content-Type | application/json |
Accept | application/json |
Transaction Request Object
Example Transaction Request object
{
"Request": {
"AmtPurchase": 100,
"TxnType": "P",
"TxnRef": "1234567890",
"Basket": {
"Id": "t39kq18134553",
"Amt": 2145,
"Tax": 200,
"Dis": 50,
"Sur": 0,
"Items": [
{
"Id": "t39kq002",
"Sku": "k24086723",
"Qty": 2,
"Amt": 2145,
"Tax": 200,
"Dis": 50,
"Name": "XData USB Drive"
}
]
}
}
}
Field KeyName | Type | Required | Description |
---|---|---|---|
Merchant | string(2) | Two Digit Merchant Code. Defaults to '00' (EFTPOS) unless performing TPP transactions | |
ReceiptAutoPrint | string(1) | Indicates if the POS is to receive Receipt Events, default '0'. | |
CutReceipt | string(1) | Indicates whether Linkly should cut receipts. Defaults to '0' (DontCut) | |
TxnType | string(1) | Yes | Required. Indicated the type of transaction to perform |
CurrencyCode | string(3) | Currency code for this transaction (e.g. AUD) A 3-digit ISO currency code. Defaults to " "(NotSet) | |
OriginalTxnType | string(1) | The original type of transaction for voucher entry. Defaults to 'P' (PurchaseCash) | |
Date | string(12) | Yes | Nullable. Original transaction time. Used for voucher or completion only |
Time | string(12) | Nullable. Original transaction time. Used for voucher or completion only | |
TrainingMode | bool | Nullable. Determines if the transaction is a training mode transaction. Set to TRUE if the transaction is to be performed in training mode. The default is FALSE. |
|
EnableTip | bool | Nullable. Set to TRUE if tipping is to be enabled for this transaction. The default is FALSE | |
AmtCash | number | In Cents. The cash amount for the transaction. This property is mandatory for a 'C' transaction type. | |
AmtPurchase | number | Yes | In Cents. The purchase amount for the transaction. |
AuthCode | string(6) | Nullable. The authorisation number for the transaction. Defaults to 0 | |
TxnRef | string(16) | Yes | Required. |
PanSource | string(1) | Indicates the source of the PAN. Use this property for card not present transactions. Defaults to ' ' (PIN pad) | |
Pan | string(20) | The PAN to use when pan source of POS keyed is used. Use this property in conjunction with PanSource | |
DateExpiry | string(4) | The expiry date of the card when of POS keyed is used. In MMYY format. Use this property in conjunction with PanSource when passing the card expiry date to Linkly. | |
Track2 | string(40) | The track 2 to use when of POS swiped is used. Use this property in conjunction with PanSource | |
AccountType | string(1) | The account to use for this transaction. Defaults to ' ' (prompt user) | |
RRN | string(12) | The retrieval reference number for the transaction. Only required for some transaction types | |
PurchaseAnalysisData | object | Extended fields. See Purchase Analysis Data section for details | |
Basket | object | See basket section for details |
Transaction Response HTTP Status Codes
Code | Description | Required action |
---|---|---|
200 | Only for synchronous mode. The transaction completed and a valid response has been returned. The 'success' property in the Response object indicates the financial success of the transaction. | Check the body for an APIResponse object |
202 | Only for asynchronous mode. The transaction has been started. Response body will be null. | The POS should await the result in its Notification postback |
400 | Invalid request. The transaction has not completed successfully. | Report the error and notify the operator. Do not retry. |
401 | The token supplied is invalid. | The POS should refresh the token and attempt the request again. If this persists, the password may have changed. |
404 | Resource not found. The transaction was not submitted successfully. | The request URI is not configured properly. Report the error and notify the operator. Do not retry. |
408 | A transient error has occurred. | The POS should enter error recovery |
500-599 | A server error has occurred. | The POS should enter error recovery |
Transaction Response Object
Example Transaction Response object
{
"SessionId": "dd250a0c81c202b66220d7379b338b8f",
"ResponseType": "transaction",
"Response": {
"TxnType": "P",
"Merchant": "00",
"CardType": "AMEX CARD ",
"CardName": "05",
"RRN": "123456789012",
"DateSettlement": "2018-07-31T00:00:00",
"AmtCash": 0,
"AmtPurchase": 100,
"AmtTip": 0,
"AuthCode": 123456,
"TxnRef": "1234567890 ",
"Pan": "37601234567890 ",
"DateExpiry": "4909",
"Track2": "37601234567890=0949?,,S, YES, 05?????? ",
"AccountType": "2",
"TxnFlags": {
"Offline": "1",
"ReceiptPrinted": "0",
"CardEntry": "S",
"CommsMethod": "0",
"Currency": "0",
"PayPass": "0",
"UndefinedFlag6": "0",
"UndefinedFlag7": "0"
},
"BalanceReceived": false,
"AvailableBalance": 0,
"ClearedFundsBalance": 0,
"Success": true,
"ResponseCode": "00",
"ResponseText": "APPROVED ",
"Date": "2018-07-31T16:14:40",
"Catid": "12345678",
"Caid": "0987654321 ",
"Stan": 0,
"PurchaseAnalysisData": {},
"Receipts": [
{
"Type": "C",
"ReceiptText": [
"------------------------",
" *** TRAINING MODE *** ",
" TEST MERCHANT TITLE ",
" TEST MERCHANT NAME ",
" LINE2 ",
" ",
"00:38:34 16/10/20 ",
" ",
"SAVINGS ACCOUNT ",
" ",
"PURCHASE AUD $2.00",
" --------",
"TOTAL AUD $2.00",
" ",
"APPROVED - 00 ",
" ",
"PLEASE RETAIN AS RECORD ",
" OF PURCHASE ",
"------------------------"
],
"IsPrePrint": false
}
]
}
}
Field KeyName | Type (Length) | Description |
---|---|---|
Merchant | string(2) | Two Digit Merchant Code. Defaults to '00' (EFTPOS) unless performing TPP transactions |
CardType | string(20) | Indicates the card type that was used in the transaction. |
CardName | string(2) | BIN Number of the card |
TxnType | string(1) | Required. Indicated the type of transaction to perform |
DateSettlement | string(12) | Indicates which settlement batch this transaction will be included in. |
AmtTip | number | In cents. The tip amount for the transaction. |
TxnFlags | object | Flags that indicate how the transaction was processed. |
BalanceReceived | bool | Indicates if an available balance is present in the response. |
AvailableBalance | number | Balance available on the processed account. |
ClearedFundsBalance | number | Cleared balance on the processed account. |
AmtCash | number | In cents. The cash amount for the transaction. This property is mandatory for a 'C' transaction type. |
AmtPurchase | number | In cents. The purchase amount for the transaction. |
Success | bool | Indicates if the request was successful. |
TxnRef | string(16) | The reference number to attach to the transaction. This will appear on the receipt. |
ResponseCode | string(2) | The response code of the request. |
Pan | string(20) | The PAN to use when pan source of POS keyed is used. Use this property in conjunction with PanSource |
ResponseText | string(20) | The response text for the response code. |
Track2 | string(40) | The track 2 to use when of POS swiped is used. Use this property in conjunction with PanSource |
Date | string(12) | Date and time of the response returned by the bank |
RRN | string(12) | The retrieval reference number for the transaction. Only required for some transaction types |
Catid | string(8) | Terminal ID configured in the PIN pad. |
Caid | string(15) | Merchant ID configured in the PIN pad. |
Stan | number | System Trace Audit Number |
PurchaseAnalysisData | object | Extended fields. See Purchase Analysis Data section for details |
Synchronous mode of communication
The sequence diagram for a sample successful transaction in synchronous mode of communication is shown below
Transaction Status
Transaction Status request
# replace <<SessionId>> with the SessionId of the transaction to retrieve
# replace <<token>> with the token returned from your auth request
curl -v "https://127.0.0.1/v1/sessions/<<SessionId>>/transaction?async=false" \
-X GET \
-H 'Authorization: Bearer <<token>>' \
-H 'Accept: application/json'
var SessionId = "<<SessionId>>"; // replace <<SessionId>> with the SessionId of the transaction to retrieve
var token = "<<token>>"; // replace <<token>> with the token returned from your auth request
var request = new HttpRequestMessage(HttpMethod.Get, $"https://127.0.0.1/v1/sessions/{SessionId}/transaction?async=false");
request.Headers.Authorization = new AuthenticationHeaderValue("Bearer", token);
var httpClient = new HttpClient(); // Note: in production don't create multiple HttpClient instances. Share one single instance.
HttpResponseMessage httpResponse = await httpClient.SendAsync(request);
string responseContent = await httpResponse.Content.ReadAsStringAsync();
import datetime
import uuid
import requests; # http://python-requests.org
SessionId = '<<SessionId>>' # replace <<SessionId>> with the SessionId of the transaction to retrieve
token = '<<token>>' # replace <<token>> with the token returned from your auth request
uri = 'https://127.0.0.1/v1/sessions/' + SessionId + '/transaction?async=false'
headers = {'Authorization': 'Bearer ' + token}
response = requests.get(uri, headers=headers)
response_payload = response.json()
Request the status of a previous transaction.
URI Path
GET ~/v1/sessions/<<sessionid>>/transaction
Headers
Parameter | Value |
---|---|
Content-Type | application/json |
Accept | application/json |
Transaction Status Response HTTP Status Codes
Code | Description | Required action |
---|---|---|
200 | The transaction completed and a valid response has been returned. The 'success' property in the Response object indicates the financial success of the requested transaction. | Check the body for an APIResponse object |
202 | The transaction has been started. Response body will be null. | The POS should wait a few seconds and try again. |
400 | Invalid request. It is likely that the session Id is not a valid UUID. | Report the error and notify the operator. Do not retry. |
401 | The token supplied is invalid. | The POS should refresh the token and attempt the request again. If this persists, the password may have changed. |
404 | Resource not found. Either the request URI is wrong or the transaction was not submitted successfully and could not be found. | Check to ensure that the URI is correct. If in Recovery mode, the original transaction can be retried. |
408 | A transient error has occurred. | Wait a few seconds and retry |
500-599 | A server error has occurred. | Wait a few seconds and retry |
Transaction Status Response Body
Exmaple Transaction Status response
{
"SessionId": "dd250a0c81c202b66220d7379b338b8f",
"ResponseType": "transaction",
"Response": {
"TxnType": "P",
"Merchant": "00",
"CardType": "AMEX CARD ",
"CardName": "05",
"RRN": "123456789012",
"DateSettlement": "2018-07-31T00:00:00",
"AmtCash": 0,
"AmtPurchase": 100,
"AmtTip": 0,
"AuthCode": 123456,
"TxnRef": "1234567890 ",
"Pan": "37601234567890 ",
"DateExpiry": "4909",
"Track2": "37601234567890=0949?,,S, YES, 05?????? ",
"AccountType": "2",
"TxnFlags": {
"Offline": "1",
"ReceiptPrinted": "0",
"CardEntry": "S",
"CommsMethod": "0",
"Currency": "0",
"PayPass": "0",
"UndefinedFlag6": "0",
"UndefinedFlag7": "0"
},
"BalanceReceived": false,
"AvailableBalance": 0,
"ClearedFundsBalance": 0,
"Success": true,
"ResponseCode": "00",
"ResponseText": "APPROVED ",
"Date": "2018-07-31T16:14:40",
"Catid": "12345678",
"Caid": "0987654321 ",
"Stan": 0,
"PurchaseAnalysisData": {},
"Receipts": [
{
"Type": "C",
"ReceiptText": [
"------------------------",
" *** TRAINING MODE *** ",
" TEST MERCHANT TITLE ",
" TEST MERCHANT NAME ",
" LINE2 ",
" ",
"00:38:34 16/10/20 ",
" ",
"SAVINGS ACCOUNT ",
" ",
"PURCHASE AUD $2.00",
" --------",
"TOTAL AUD $2.00",
" ",
"APPROVED - 00 ",
" ",
"PLEASE RETAIN AS RECORD ",
" OF PURCHASE ",
"------------------------"
],
"IsPrePrint": false
}
]
}
}
Field KeyName | Description |
---|---|
Merchant | Two Digit Merchant Code. Defaults to '00' (EFTPOS) unless performing TPP transactions |
CardType | Indicates the card type that was used in the transaction. |
CardName | BIN Number of the card |
TxnType | Required. Indicated the type of transaction to perform |
DateSettlement | Indicates which settlement batch this transaction will be included in. |
AmtTip | The tip amount for the transaction. |
TxnFlags | Flags that indicate how the transaction was processed. |
BalanceReceived | Indicates if an available balance is present in the response. |
AvailableBalance | Balance available on the processed account. |
ClearedFundsBalance | Cleared balance on the processed account. |
AmtCash | In Cents. The cash amount for the transaction. This property is mandatory for a 'C' transaction type. |
AmtPurchase | In Cents. The purchase amount for the transaction. |
Success | Indicates if the request was successful. |
TxnRef | Required. |
ResponseCode | The response code of the request. |
Pan | The PAN to use when pan source of POS keyed is used. Use this property in conjunction with PanSource |
ResponseText | The response text for the response code. |
Track2 | The track 2 to use when of POS swiped is used. Use this property in conjunction with PanSource |
Date | Date and time of the response returned by the bank |
RRN | The retrieval reference number for the transaction. Only required for some transaction types |
Caid | Terminal ID configured in the PIN pad. |
Stan | Merchant ID configured in the PIN pad. |
PurchaseAnalysisData | Extended fields. See Purchase Analysis Data section for details |
Status
Status request
# replace <<token>> with the token returned from your auth request
curl -v "https://127.0.0.1/v1/sessions/$(uuidgen)/status?async=false" \
-X POST \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <<token>>' \
-H 'Accept: application/json' \
-d '{
"Request": {
"StatusType": "0"
}
}'
var token = "<<token>>"; // replace <<token>> with the token returned from your auth request
var requestContent = new
{
Request = new
{
StatusType = "0"
}
};
var request = new HttpRequestMessage(HttpMethod.Post, $"https://127.0.0.1/v1/sessions/{Guid.NewGuid().ToString()}/status?async=false")
{
Content = new StringContent(Newtonsoft.Json.JsonConvert.SerializeObject(requestContent), System.Text.Encoding.UTF8, "application/json")
};
request.Headers.Authorization = new AuthenticationHeaderValue("Bearer", token);
var httpClient = new HttpClient(); // Note: in production don't create multiple HttpClient instances. Share one single instance.
HttpResponseMessage httpResponse = await httpClient.SendAsync(request);
string responseContent = await httpResponse.Content.ReadAsStringAsync();
import datetime
import uuid
import requests; # http://python-requests.org
token = '<<token>>' # replace <<token>> with the token returned from your auth request
request_payload = {
"Request": {
"StatusType": "0"
}
}
uri = 'https://127.0.0.1/v1/sessions/' + str(uuid.uuid4()) + '/status?async=false'
headers = {'Authorization': 'Bearer ' + token}
response = requests.post(uri, json=request_payload, headers=headers)
response_payload = response.json()
Instruct the EFT-Client to send a status message to the PIN pad to check if the PIN pad is available for use.
URI Path
POST ~/v1/sessions/<<sessionid>>/status&async=false
Headers
Parameter | Value |
---|---|
Authorization | The bearer token returned from ~/v1/tokens/cloudpos |
Content-Type | application/json |
Accept | application/json |
Status Request Object
Example Status Request object
{
"Request": {
"Merchant": "00",
"StatusType": "0"
}
}
Field KeyName | Required | Description |
---|---|---|
Merchant | Two Digit Merchant Code. Defaults to '00' (EFTPOS) | |
Application | Indicates where the request is to be sent to. Defaults to "00" (EFTPOS) | |
StatusType | Type of status to perform. Defaults to '0' (standard) |
Status Response HTTP Status Codes
Code | Description |
---|---|
200 | Only for synchronous mode. The request completed and a valid response has been returned from the PIN pad. The 'success' property in the Response object indicates the actual success of the transaction. |
202 | Only for asynchronous mode. The request has been started. The POS should await the result in its notification postback (Asynchronous mode only). Response body will be null. |
400 | Invalid request. The request has not completed successfully. |
401 | The token supplied is invalid. The POS should refresh the token and attempt the request again |
404 | Resource not found. The request was not submitted successfully. |
408 | A transient error has occurred. The POS should allow the operator to try the request again. |
500-599 | A server error has occurred. The POS should allow the operator to try the request again. |
Status Response Object
Example status Response object
{
"SessionId": "df8db91bbb10d62057877b5df00a89b0",
"ResponseType": "status",
"Response": {
"Merchant": "00",
"AIIC": null,
"NII": 0,
"Catid": "123456",
"Caid": "654321",
"Timeout": 0,
"LoggedOn": false,
"PinPadSerialNumber": "",
"PinPadVersion": "",
"BankCode": " ",
"BankDescription": "",
"KVC": "",
"SAFCount": 0,
"NetworkType": "3",
"HardwareSerial": "",
"RetailerName": "",
"OptionsFlags": {
"Tipping": false,
"PreAuth": false,
"Completions": false,
"CashOut": false,
"Refund": false,
"Balance": false,
"Deposit": false,
"Voucher": false,
"MOTO": false,
"AutoCompletion": false,
"EFB": false,
"EMV": false,
"Training": false,
"Withdrawal": false,
"Transfer": false,
"StartCash": false
},
"SAFCreditLimit": 0,
"SAFDebitLimit": 0,
"MaxSAF": 0,
"KeyHandlingScheme": "2",
"CashoutLimit": 0,
"RefundLimit": 0,
"CPATVersion": "",
"NameTableVersion": "",
"TerminalCommsType": "2",
"CardMisreadCount": 0,
"TotalMemoryInTerminal": 0,
"FreeMemoryInTerminal": 0,
"EFTTerminalType": "Unknown",
"NumAppsInTerminal": 0,
"NumLinesOnDisplay": 0,
"HardwareInceptionDate": "0001-01-01T00:00:00",
"Success": false,
"ResponseCode": "PF",
"ResponseText": "PINpad Offline "
}
}
Field KeyName | Description |
---|---|
Merchant | Two Digit Merchant Code. Defaults to '00' (EFTPOS) |
AIIC | The AIIC that is configured in the terminal. |
NII | The NII that is configured in the terminal. |
CatId | The Terminal ID configured in the PIN pad |
CaId | The Merchant ID configured in the PIN pad |
Timeout | The bank response timeout that is configured in the terminal |
LoggedOn | Indicates if the PIN pad is currently logged on |
PinPadSerialNumber | The serial number of the terminal |
PinPadVersion | PIN pad software version |
BankCode | the bank acquirer code |
BankDescriptionBankDescription | the bank description |
KVC | Key Verification Code |
SAFCount | Current number of stored transactions |
NetworkType | The Acquirer communications type |
HardwareSerial | The hardware serial number |
RetailerName | The Merchant retailer name |
OptionFlags | PIN pad terminal supported option flags |
SAFCreditLimit | Store-and-forward credit limit |
SAFDebitLimit | Store-and-forward debit limit |
MaxSAF | The maximum number of store transaction |
KeyHandlingScheme | The terminal key handling scheme |
CashoutLimit | The maximum cash out limit |
RefundLimit | The Maximum refund limit |
CPATVersion | Card prefix table version |
NameTableVersion | Card Name Table version |
TerminalCommsType | The terminal to PC communications type |
CardMisreadCount | The number of card mis-reads |
TotalMemoryInTerminal | Number of memory pages in the PIN pad Terminal |
FreeMemoryInTerminal | number of free memory pages in the PIN pad terminal |
EFTTerminalType | The Type of the PIN pad |
NumAppsInTerminal | Number of applications in the terminal |
NumLinesOnDisplay | Number of available display lines on the terminal |
HardwareInceptionDate | The date the hardware was incepted |
Success | Indicates if the request was successful |
ResponseCode | The response code of the request |
ResponseText | The response text for the response code |
Logon
Logon request
# replace <<token>> with the token returned from your auth request
curl -v "https://127.0.0.1/v1/sessions/$(uuidgen)/logon?async=false" \
-X POST \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <<token>>' \
-H 'Accept: application/json' \
-d '{
"Request": {
"LogonType": " "
}
}'
var token = "<<token>>"; // replace <<token>> with the token returned from your auth request
var requestContent = new
{
Request = new
{
LogonType = " "
}
};
var request = new HttpRequestMessage(HttpMethod.Post, $"https://127.0.0.1/v1/sessions/{Guid.NewGuid().ToString()}/logon?async=false")
{
Content = new StringContent(Newtonsoft.Json.JsonConvert.SerializeObject(requestContent), System.Text.Encoding.UTF8, "application/json")
};
request.Headers.Authorization = new AuthenticationHeaderValue("Bearer", token);
var httpClient = new HttpClient(); // Note: in production don't create multiple HttpClient instances. Share one single instance.
HttpResponseMessage httpResponse = await httpClient.SendAsync(request);
string responseContent = await httpResponse.Content.ReadAsStringAsync();
import datetime
import uuid
import requests; # http://python-requests.org
token = '<<token>>' # replace <<token>> with the token returned from your auth request
request_payload = {
"Request": {
"LogonType": " "
}
}
uri = 'https://127.0.0.1/v1/sessions/' + str(uuid.uuid4()) + '/logon?async=false'
headers = {'Authorization': 'Bearer ' + token}
response = requests.post(uri, json=request_payload, headers=headers)
response_payload = response.json()
Instruct the EFT-Client to send a logon request to the PIN pad.
URI Path
POST ~/v1/sessions/<<sessionid>>/logon&async=false
Headers
Parameter | Value |
---|---|
Content-Type | application/json |
Accept | application/json |
Logon Request Object
Example logon request object
{
"Request": {
"Merchant": "00",
"LogonType": " ",
"Application": "00",
"ReceiptAutoPrint": "0",
"CutReceipt": "0"
}
}
Field KeyName | Required | Description |
---|---|---|
Merchant | Two Digit Merchant Code. Defaults to '00' (EFTPOS) | |
Application | Indicates where the request is to be sent to. Defaults to "00" (EFTPOS) | |
ReceiptAutoPrint | Indicates if the POS is to receive receipt events, default '0'. | |
CutReceipt | Indicates whether Linkly should cut receipts. Defaults to '0' (DontCut) | |
LogonType | see definition | |
PurchaseAnalysisData | Extended fields. See Purchase Analysis Data section for details |
Logon Response HTTP Status Codes
Code | Description |
---|---|
200 | Only for synchronous mode. The request completed and a valid response has been returned from the PIN pad. The 'success' property in the Response object indicates the actual success of the transaction. |
202 | Only for asynchronous mode. The request has been started. The POS should await the result in its notification postback (Asynchronous mode only). Response body will be null. |
400 | Invalid request. The request has not completed successfully. |
401 | The token supplied is invalid. The POS should refresh the token and attempt the request again |
404 | Resource not found. The request was not submitted successfully. |
408 | A transient error has occurred. The POS should allow the operator to try the request again. |
500-599 | A server error has occurred. The POS should allow the operator to try the request again. |
Logon Response Object
Example logon Response object
{
"SessionId": "74a5505913df3ecd53d45930a82c3fd3",
"ResponseType": "logon",
"Response": {
"PinPadVersion": "100800 ",
"Success": true,
"ResponseCode": "00",
"ResponseText": "APPROVED ",
"Date": "0001-01-01T00:00:00",
"Catid": "12345678",
"Caid": "0987654321 ",
"Stan": 0,
"PurchaseAnalysisData": {}
}
}
Field KeyName | Description |
---|---|
PinPadVersion | PIN pad software version. |
Success | Required. Indicates if the request was successful. |
ResponseCode | The response code of the request |
ResponseText | The response text for the response code |
Date | Date and time of the response returned by the bank. |
Catid | Terminal ID configured in the PIN pad |
Caid | Merchant ID configured in the PIN pad |
Stan | System Trace Audit Number |
PurchaseAnalysisData | Extended fields. See Purchase Analysis Data section for details |
Settlement
Settlement request
# replace <<token>> with the token returned from your auth request
curl -v "https://127.0.0.1/v1/sessions/$(uuidgen)/settlement?async=false" \
-X POST \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <<token>>' \
-H 'Accept: application/json' \
-d '{
"Request": {
"SettlementType": "S"
}
}'
var token = "<<token>>"; // replace <<token>> with the token returned from your auth request
var requestContent = new
{
Request = new
{
SettlementType = "S"
}
};
var request = new HttpRequestMessage(HttpMethod.Post, $"https://127.0.0.1/v1/sessions/{Guid.NewGuid().ToString()}/settlement?async=false")
{
Content = new StringContent(Newtonsoft.Json.JsonConvert.SerializeObject(requestContent), System.Text.Encoding.UTF8, "application/json")
};
request.Headers.Authorization = new AuthenticationHeaderValue("Bearer", token);
var httpClient = new HttpClient(); // Note: in production don't create multiple HttpClient instances. Share one single instance.
HttpResponseMessage httpResponse = await httpClient.SendAsync(request);
string responseContent = await httpResponse.Content.ReadAsStringAsync();
import datetime
import uuid
import requests; # http://python-requests.org
token = '<<token>>' # replace <<token>> with the token returned from your auth request
request_payload = {
"Request": {
"SettlementType": "S"
}
}
uri = 'https://127.0.0.1/v1/sessions/' + str(uuid.uuid4()) + '/settlement?async=false'
headers = {'Authorization': 'Bearer ' + token}
response = requests.post(uri, json=request_payload, headers=headers)
response_payload = response.json()
Send a settlement request.
URI Path
POST ~/v1/sessions/<<sessionid>>/settlement&async=false
Headers
Parameter | Value |
---|---|
Authorization | The bearer token returned from ~/v1/tokens/cloudpos |
Content-Type | application/json |
Accept | application/json |
Settlement Request Object
Example settlement request object
{
"Request": {
"Merchant": "00",
"SettlementType": "S",
"Application": "00",
"ReceiptAutoPrint": "0",
"CutReceipt": "0"
}
}
Field KeyName | Required | Description |
---|---|---|
Merchant | Two Digit Merchant Code. Defaults to '00' (EFTPOS) | |
Application | Indicates where the request is to be sent to. Defaults to "00" (EFTPOS) | |
SettlementType | Type of settlement to perform. Defaults to 'S' (Settlement) | |
ReceiptAutoPrint | Indicates if the POS is to receive receipt events, default '0'. | |
CutReceipt | Indicates whether Linkly should cut receipts. Defaults to '0' (DontCut) | |
ResetTotals | Reset totals after settlement. Only used for settlement type 'H' (SubShiftTotals). Defaults to false |
Settlement Response HTTP Status Codes
Code | Description |
---|---|
200 | Only for synchronous mode. The request completed and a valid response has been returned from the PIN pad. The 'success' property in the Response object indicates the actual success of the transaction. |
202 | Only for asynchronous mode. The request has been started. The POS should await the result in its notification postback (Asynchronous mode only). Response body will be null. |
400 | Invalid request. The request has not completed successfully. |
401 | The token supplied is invalid. The POS should refresh the token and attempt the request again |
404 | Resource not found. The request was not submitted successfully. |
408 | A transient error has occurred. The POS should allow the operator to try the request again. |
500-599 | A server error has occurred. The POS should allow the operator to try the request again. |
Settlement Response Object
Example settlement Response object
{
"SessionId": "7a2c33ce29b985f52f2bab7dfa4cce7d",
"ResponseType": "settlement",
"Response": {
"Merchant": "00",
"SettlementTotalsData": [
{
"CardName": "MasterCard",
"PurchaseAmount": 100000,
"PurchaseCount": 3,
"CashOutAmount": 0,
"CashOutCount": 0,
"RefundAmount": 7000,
"RefundCount": 1,
"TotalAmount": 93000,
"TotalCount": 4
},
{
"CardName": "TOTAL",
"PurchaseAmount": 100000,
"PurchaseCount": 3,
"CashOutAmount": 0,
"CashOutCount": 0,
"RefundAmount": 7000,
"RefundCount": 1,
"TotalAmount": 93000,
"TotalCount": 4
}
],
"SettlementReport": {
"IsPreprint": false,
"ReceiptText": [
"------------------------",
" Merchant Line 0 ",
" Merchant Line 1 ",
" Merchant Line 2 ",
" Merchant Line 3 ",
"MERCH ID: 00002547000005",
"TERM ID: 47000005",
"BATCH NO: 07/00 ",
" ",
" ",
" SETTLEMENT REPORT ",
" ",
" ",
"PURCHASE: x3 $1000.00",
"CASH OUT: x0 $0.00",
"REFUND: x1 $70.00",
"NET TOTAL: x4 $930.00",
" ",
" ",
"Inclusive Of ",
"CASHBACK: x0 $0.00",
"TIP: x0 $0.00",
" ",
" ",
"Card Scheme Net Totals: ",
"MASTERCARD:x4 $930.00",
" ",
" ",
" SETTLEMENT SUCCESS ",
"************************",
"* TOTALS IN BALANCE *",
"* Totals reset *",
"************************",
"------------------------"
],
"Type": "M"
},
"Success": true,
"ResponseCode": "00",
"ResponseText": "APPROVED"
}
}
Field KeyName | Description |
---|---|
Merchant | Two Digit Merchant Code. Defaults to '00' (EFTPOS) |
Success | Required. Indicates if the request was successful. |
ResponseCode | The response code of the request |
ResponseText | The response text for the response code |
SettlementReport | Contains the receipt with settlement totals |
SettlementTotalsData | JSON formatted settlement totals data returned from the bank |
QueryCard
Query card request
# replace <<token>> with the token returned from your auth request
curl -v "https://127.0.0.1/v1/sessions/$(uuidgen)/querycard?async=false" \
-X POST \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <<token>>' \
-H 'Accept: application/json' \
-d '{
"Request": {
"QueryCardType": "0"
}
}'
var token = "<<token>>"; // replace <<token>> with the token returned from your auth request
var requestContent = new
{
Request = new
{
QueryCardType = "0"
}
};
var request = new HttpRequestMessage(HttpMethod.Post, $"https://127.0.0.1/v1/sessions/{Guid.NewGuid().ToString()}/querycard?async=false")
{
Content = new StringContent(Newtonsoft.Json.JsonConvert.SerializeObject(requestContent), System.Text.Encoding.UTF8, "application/json")
};
request.Headers.Authorization = new AuthenticationHeaderValue("Bearer", token);
var httpClient = new HttpClient(); // Note: in production don't create multiple HttpClient instances. Share one single instance.
HttpResponseMessage httpResponse = await httpClient.SendAsync(request);
string responseContent = await httpResponse.Content.ReadAsStringAsync();
import datetime
import uuid
import requests; # http://python-requests.org
token = '<<token>>' # replace <<token>> with the token returned from your auth request
request_payload = {
"Request": {
"QueryCardType": "0"
}
}
uri = 'https://127.0.0.1/v1/sessions/' + str(uuid.uuid4()) + '/querycard?async=false'
headers = {'Authorization': 'Bearer ' + token}
response = requests.post(uri, json=request_payload, headers=headers)
response_payload = response.json()
Send a query card request.
URI Path
POST ~/v1/sessions/<<sessionid>>/querycard&async=false
Headers
Parameter | Value |
---|---|
Content-Type | application/json |
Accept | application/json |
Query Card Request Object
Example querycard request object
{
"Request": {
"Merchant": "00",
"QueryCardType": "0",
"Application": "00"
}
}
Field KeyName | Required | Description |
---|---|---|
Merchant | Two Digit Merchant Code. Defaults to '00' (EFTPOS) | |
Application | Indicates where the request is to be sent to. Defaults to "00" (EFTPOS) | |
QueryCardType | Type of querycard to perform. Defaults to '0' | |
PurchaseAnalysisData | Extended fields. See Purchase Analysis Data section for details |
Query Card Response HTTP Status Codes
Code | Description |
---|---|
200 | Only for synchronous mode. The request completed and a valid response has been returned from the PIN pad. The 'success' property in the Response object indicates the actual success of the transaction. |
202 | Only for asynchronous mode. The request has been started. The POS should await the result in its notification postback (Asynchronous mode only). Response body will be null. |
400 | Invalid request. The request has not completed successfully. |
401 | The token supplied is invalid. The POS should refresh the token and attempt the request again |
404 | Resource not found. The request was not submitted successfully. |
408 | A transient error has occurred. The POS should allow the operator to try the request again. |
500-599 | A server error has occurred. The POS should allow the operator to try the request again. |
Query Card Response Object
Example querycard Response object
{
"SessionId": "7a2c33ce29b985f52f2bab7dfa4cce7d",
"ResponseType": "querycard",
"Response": {
"Merchant": "00",
"IsTrack1Available": false,
"IsTrack2Available": true,
"IsTrack3Available": false,
"Track1": "",
"Track2": "1234567890=0949?,,S, YES, 05???????\u0000",
"Track3": "",
"CardName": "32",
"AccountType": " ",
"Success": true,
"ResponseCode": "00",
"ResponseText": "APPROVED ",
"PurchaseAnalysisData": {}
}
}
Field KeyName | Description |
---|---|
Merchant | Two Digit Merchant Code. Defaults to '00' (EFTPOS) |
Success | Required. Indicates if the request was successful. |
ResponseCode | The response code of the request |
ResponseText | The response text for the response code |
AccountType | Account type selected |
IsTrack1Available | Indicates if track1 was read |
IsTrack2Available | Indicates if track2 was read |
IsTrack3Available | Indicates if track3 was read |
Track1 | Data encoded on track1 of the card |
Track2 | Data encoded on track2 of the card |
Track3 | Data encoded on track3 of the card |
CardName | The BIN number of the card |
PurchaseAnalysisData | Extended fields. See Purchase Analysis Data section for details |
ConfigureMerchant
Configure merchant request
# replace <<token>> with the token returned from your auth request
curl -v "https://127.0.0.1/v1/sessions/$(uuidgen)/configuremerchant?async=false" \
-X POST \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <<token>>' \
-H 'Accept: application/json' \
-d '{
"Request": {
"Catid": "12345678",
"Caid": "0123456789ABCDE"
}
}'
var token = "<<token>>"; // replace <<token>> with the token returned from your auth request
var requestContent = new
{
Request = new
{
Catid = "12345678",
Caid = "0123456789ABCDE"
}
};
var request = new HttpRequestMessage(HttpMethod.Post, $"https://127.0.0.1/v1/sessions/{Guid.NewGuid().ToString()}/configuremerchant?async=false")
{
Content = new StringContent(Newtonsoft.Json.JsonConvert.SerializeObject(requestContent), System.Text.Encoding.UTF8, "application/json")
};
request.Headers.Authorization = new AuthenticationHeaderValue("Bearer", token);
var httpClient = new HttpClient(); // Note: in production don't create multiple HttpClient instances. Share one single instance.
HttpResponseMessage httpResponse = await httpClient.SendAsync(request);
string responseContent = await httpResponse.Content.ReadAsStringAsync();
import datetime
import uuid
import requests; # http://python-requests.org
token = '<<token>>' # replace <<token>> with the token returned from your auth request
request_payload = {
"Request": {
"Catid": "12345678",
"Caid": "0123456789ABCDE"
}
}
uri = 'https://127.0.0.1/v1/sessions/' + str(uuid.uuid4()) + '/configuremerchant?async=false'
headers = {'Authorization': 'Bearer ' + token}
response = requests.post(uri, json=request_payload, headers=headers)
response_payload = response.json()
Send a configure merchant request.
URI Path
POST ~/v1/sessions/<<sessionid>>/configuremerchant&async=false
Headers
Parameter | Value |
---|---|
Authorization | The bearer token returned from ~/v1/tokens/cloudpos |
Content-Type | application/json |
Accept | application/json |
Configure Merchant Request Object
Example configure merchant request object
{
"Request": {
"Merchant": "00",
"Catid": "12345678",
"Caid": "0123456789"
}
}
Field KeyName | Required | Description |
---|---|---|
Merchant | Two Digit Merchant Code. Defaults to '00' (EFTPOS) | |
Application | Indicates where the request is to be sent to. Defaults to "00" (EFTPOS) | |
Catid | The terminal ID (CatID) to configure the terminal with | |
CaId | The merchant ID (CaID) to configure the terminal with | |
AIIC | The AIIC to configure the terminal with. Defaults to 0 | |
NII | The NII to configure the terminal with. Defaults to 0 | |
Timeout | The bank response timeout specified in seconds. Defaults to 45 |
Configure Merchant Response HTTP Status Codes
Code | Description |
---|---|
200 | Only for synchronous mode. The request completed and a valid response has been returned from the PIN pad. The 'success' property in the Response object indicates the actual success of the transaction. |
202 | Only for asynchronous mode. The request has been started. The POS should await the result in its notification postback (Asynchronous mode only). Response body will be null. |
400 | Invalid request. The request has not completed successfully. |
401 | The token supplied is invalid. The POS should refresh the token and attempt the request again |
404 | Resource not found. The request was not submitted successfully. |
408 | A transient error has occurred. The POS should allow the operator to try the request again. |
500-599 | A server error has occurred. The POS should allow the operator to try the request again. |
Configure Merchant Response Object
Example configure merchant Response object
{
"SessionId": "7a2c33ce29b985f52f2bab7dfa4cce7d",
"ResponseType": "configuremerchant",
"Response": {
"Merchant": "00",
"Success": true,
"ResponseCode": "00",
"ResponseText": "APPROVED "
}
}
Field KeyName | Description |
---|---|
Merchant | Two Digit Merchant Code. Defaults to '00' (EFTPOS) |
Success | Required. Indicates if the request was successful. |
ResponseCode | The response code of the request |
ResponseText | The response text for the response code |
Reprint Receipt
Reprint receipt request
# replace <<token>> with the token returned from your auth request
curl -v "https://127.0.0.1/v1/sessions/$(uuidgen)/reprintreceipt?async=false" \
-X POST \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <<token>>' \
-H 'Accept: application/json' \
-d '{
"Request": {
"ReprintType": "2"
}
}'
var token = "<<token>>"; // replace <<token>> with the token returned from your auth request
var requestContent = new
{
Request = new
{
ReprintType = "2"
}
};
var request = new HttpRequestMessage(HttpMethod.Post, $"https://127.0.0.1/v1/sessions/{Guid.NewGuid().ToString()}/reprintreceipt?async=false")
{
Content = new StringContent(Newtonsoft.Json.JsonConvert.SerializeObject(requestContent), System.Text.Encoding.UTF8, "application/json")
};
request.Headers.Authorization = new AuthenticationHeaderValue("Bearer", token);
var httpClient = new HttpClient(); // Note: in production don't create multiple HttpClient instances. Share one single instance.
HttpResponseMessage httpResponse = await httpClient.SendAsync(request);
string responseContent = await httpResponse.Content.ReadAsStringAsync();
import datetime
import uuid
import requests; # http://python-requests.org
token = '<<token>>' # replace <<token>> with the token returned from your auth request
request_payload = {
"Request": {
"ReprintType": "2"
}
}
uri = 'https://127.0.0.1/v1/sessions/' + str(uuid.uuid4()) + '/reprintreceipt?async=false'
headers = {'Authorization': 'Bearer ' + token}
response = requests.post(uri, json=request_payload, headers=headers)
response_payload = response.json()
Send a reprint receipt request.
URI Path
POST ~/v1/sessions/<<sessionid>>/reprintreceipt&async=false
Headers
Parameter | Value |
---|---|
Content-Type | application/json |
Accept | application/json |
Reprint Receipt Request Object
Example reprint receipt request object
{
"Request": {
"Merchant": "00",
"Application": "00",
"ReceiptAutoPrint": "0",
"ReprintType": "2",
"Type": "M"
}
}
Field KeyName | Required | Description |
---|---|---|
Merchant | Two Digit Merchant Code. Defaults to '00' (EFTPOS) | |
Application | Indicates where the request is to be sent to. Defaults to "00" (EFTPOS) | |
ReceiptAutoPrint | indicates whether to trigger receipt events. Defaults to '0' (POSPrinter) | |
CutReceipt | Indicates whether Linkly should cut receipts. Defaults to '0' (DontCut) | |
ReprintType | Indicates whether the receipt should be returned or reprinted. Defaults to '2' (GetLast) '1' is Reprint | |
OriginalTxnRef | The original txnRef of the transaction | |
PurchaseAnalysisData | Extended fields. See Purchase Analysis Data section for details | |
Type | Indicates type/copy of receipt to reprint. "M" = Merchant copy, "C" = Customer copy. Default is Customer if not specified |
Reprint Receipt Response HTTP Status Codes
Code | Description |
---|---|
200 | Only for synchronous mode. The request completed and a valid response has been returned from the PIN pad. The 'success' property in the Response object indicates the actual success of the transaction. |
202 | Only for asynchronous mode. The request has been started. The POS should await the result in its notification postback (Asynchronous mode only). Response body will be null. |
400 | Invalid request. The request has not completed successfully. |
401 | The token supplied is invalid. The POS should refresh the token and attempt the request again |
404 | Resource not found. The request was not submitted successfully. |
408 | A transient error has occurred. The POS should allow the operator to try the request again. |
500-599 | A server error has occurred. The POS should allow the operator to try the request again. |
Reprint Receipt Response Object
Example reprint receipt Response object
{
"SessionId": "7a2c33ce29b985f52f2bab7dfa4cce7d",
"ResponseType": "reprintreceipt",
"Response": {
"Merchant": "00",
"ReceiptText": [
"------------------------",
" *** TRAINING MODE *** ",
" TEST MERCHANT TITLE ",
" TEST MERCHANT NAME ",
" LINE2 ",
" ",
"14:45:52 03/08/18 ",
" ",
"CREDIT ACCOUNT ",
" ",
"PURCHASE AUD $1.00",
" --------",
"TOTAL AUD $1.00",
" ",
"APPROVED - 00 ",
" ",
"PLEASE RETAIN AS RECORD ",
" OF PURCHASE ",
"------------------------"
],
"Success": true,
"ResponseCode": "00",
"ResponseText": "APPROVED "
}
}
Field KeyName | Description |
---|---|
Merchant | Two Digit Merchant Code. Defaults to '00' (EFTPOS) |
Success | Required. Indicates if the request was successful. |
ResponseCode | The response code of the request |
ResponseText | The response text for the response code |
ReceiptText | Receipt text to be printed. Returned as an array of lines |
Send Key
Send a key press from the POS to an existing active session.
# replace <<uuid>> with the UUID from your Transaction Request
# replace <<token>> with the token returned from your auth request
curl -v "https://127.0.0.1/v1/sessions/<<uuid>>/sendkey?async=false" \
-X POST \
-H 'Content-Type: application/json' \
-H 'Authorization: Bearer <<token>>' \
-H 'Accept: application/json' \
-d '{
"Request": {
"Key": "0"
}
}'
var token = "<<token>>"; // replace <<token>> with the token returned from your auth request
var uuid = "<<uuid>>"; // replace <<uuid>> with the UUID from your Transaction Request
var requestContent = new
{
Request = new
{
Key = "0"
}
};
var request = new HttpRequestMessage(HttpMethod.Post, $"https://127.0.0.1/v1/sessions/{uuid}/sendkey?async=false")
{
Content = new StringContent(Newtonsoft.Json.JsonConvert.SerializeObject(requestContent), System.Text.Encoding.UTF8, "application/json")
};
request.Headers.Authorization = new AuthenticationHeaderValue("Bearer", token);
var httpClient = new HttpClient(); // Note: in production don't create multiple HttpClient instances. Share one single instance.
HttpResponseMessage httpResponse = await httpClient.SendAsync(request);
string responseContent = await httpResponse.Content.ReadAsStringAsync();
import datetime
import requests; # http://python-requests.org
uuid = '<<uuid>>' # replace <<uuid>> with the UUID from your Transaction Request
token = '<<token>>' # replace <<token>> with the token returned from your auth request
request_payload = {
"Request": {
"Key": "0"
}
}
uri = 'https://127.0.0.1/v1/sessions/' + uuid + '/sendkey?async=false'
headers = {'Authorization': 'Bearer ' + token}
response = requests.post(uri, json=request_payload, headers=headers)
response_payload = response.json()
Send a key press request.
URI Path
POST ~/v1/sessions/<<sessionid>>/sendkey&async=false
Headers
Parameter | Value |
---|---|
Content-Type | application/json |
Accept | application/json |
Send Key Request Object
Example send key request object
{
"Request": {
"Key": "0",
"Data": ""
}
}
Field KeyName | Required | Description |
---|---|---|
Key | true | Indicates the key to be pressed. '0' for the CANCEL key or OK key (see Note 1) '1' for the YES key '2' for the NO key '3' for the AUTH key |
Data | Entry data collected by POS. Maximum length of 60 characters |
Note 1:
The OK and CANCEL key are the same key. Only one can be displayed at a time.
Send Key Response HTTP Status Codes
Code | Description |
---|---|
200 | Only for synchronous mode. The request completed and a valid response has been returned from the PIN pad. The 'success' property in the Response object indicates the actual success of the transaction. |
202 | Only for asynchronous mode. The request has been started. The POS should await the result in its notification postback (Asynchronous mode only). Response body will be null. |
400 | Invalid request. The request has not completed successfully. |
401 | The token supplied is invalid. The POS should refresh the token and attempt the request again |
404 | Resource not found. The request was not submitted successfully. |
408 | A transient error has occurred. The POS should allow the operator to try the request again. |
500-599 | A server error has occurred. The POS should allow the operator to try the request again. |
Send Key Response Object
Example send key Response object
{
"SessionId": "7a2c33ce29b985f52f2bab7dfa4cce7d",
"ResponseType": "sendkey",
"Response": null
}
Properties
AccountType
This property is used in both events and methods, and because of this, there needs to be careful control over the setting of this property.
Event results for this property:
Returned Property | Description |
---|---|
From a 'TransactionEvent' | The Customer account type that was selected in a transaction will be returned as: 'Cheque','Savings', 'Credit', "Account 1", "Account 2", "Account 3", "Account 4" or "Account 5". |
From a 'QueryCardEvent' | It will be "0" = Savings, "2" = Cheque, "3" = Credit |
Aiic
Acquiring Institution Identification Code.
Returned by Status.
Applies to configMerchant.
Note: Not supported by all acquirers.
AmtCash
The amount of cash out for the transaction.
The STG Agency Deposit function uses this property to hold the total cash amount to deposit.
Applies to Transaction.
AmtCreditLimit
Credit limit amount.
Not used - Reserved for future use.
AmtPurchase
The purchase amount for the transaction.
Returned by transaction.
AmtTip
The tip amount for the transaction. Contains 0 if no tip was added. Returned by transaction.
Application
Value | Description |
---|---|
"00" | Make EFTPOS payment |
"02" | Make payment using extension |
Applies to Transaction.
AuthCode
Authorisation code. Returned by Transaction if the EFTPOS Acquirer returned the AuthCode
field. Also required as input to DoTransaction when a Completion is being performed.
Returned by if the acquirer returned a reference.
Returned by Transaction
Applies to Transaction.
AvailableBalance
The balance amount remaining on the card, only used on fixed value payment products.
Caid
Card Acceptor ID, also known as the "Merchant" ID.
Returned by Transaction, LogonEvent, Status.
Applies to DoConfigMerchant.
CancelKeyFlag
Enables / disables the availability of the cancel button on the display.
- 0 = No cancel button
- 1 = Cancel button
CardType
Indicates the card type used for the transaction as described by the bank. Examples may include: 'AMEX', 'VISA', 'DEBIT'. The possible values of this field may change between acquirers and pinpad versions. To identify the payment type used, reference the CardName field. Returned by TransactionEvent.
CardName
This property returns the Card BIN which can be used to identify the type of card payment used.
Card BIN | Description |
---|---|
0 | Unknown |
1 | Debit Card |
2 | China Union Pay |
3 | MasterCard |
4 | Visa |
5 | American Express |
6 | Diners Club |
7 | JCB |
8 | Private Label Card |
9 | JCB |
10 | Maestro |
11 | JCB |
12 | Other |
13 | Cabcharge |
14 | Bartercard |
15 | Fuel Card |
16 | Loyalty |
17 | Gift Card |
18 | Return Card |
19 | Shop Card |
20 | GE Card |
21 | Non-FI Card |
22 | Myer Black Card |
23 | Fleet Card |
24 | Motopass |
25 | Motorcharge |
26 | Logo 1 |
27 | Logo 2 |
28 | Visa Debit |
29 | Mastercard Debit |
30 | Unionpay credit |
31 | Unionpay debit |
51 | Wishlist |
52 | GiveX |
53 | Blackhawk |
54 | PayPal |
55 | Reserved |
56 | Reserved |
57 | FDI |
58 | Reserved |
59 | WrightExpress |
60 | Reserved |
61 | Reserved |
63 | ePay Universal |
64 | Incomm |
65 | AfterPay |
66 | AliPay |
67 | Humm |
68 | First Data Gift Card |
69 | |
89 | Zip Money |
90 | TruRating |
98 | Reserved |
99 | Reserved |
Catid
Card Acceptor Terminal ID.
Returned by Transaction, LogonEvent, Status.
Applies to configMerchant.
ChqAccount
Cheque Account Number.
Applies to .
NOT Used
ChqBranch
Cheque Branch Number.
Applies to .
NOT Used
ChqSerialNumber
Cheque Serial Number.
Applies to .
NOT Used
ClearedFundsBalance
The cleared funds balance amount.
CommandCode
Used to indicate what command is being passed to Linkly
- 'N' = Get last transaction
ConfigLocked
Set to True if the PIN pad configuration parameters are locked.
(If the terminal has stored transactions or there is a reversal pending the terminal details cannot be altered).
NOT Used
CurrencyCode
Currency code for this transaction (e.g. AUD) A 3-digit ISO currency code. Defaults to " "(NotSet).
CutReceipt
Set to "1" if the receipt should be cut by the printer after the receipt is printed.
"0" Don't cut
DataField
A private Data Field.
- For the DisplayEvent this field contains multiple lines of text to display (usually 2 lines of 20 characters each).
For the QueryCard Event
It will contain the following if it was available in the PIN pad CPAT:
Description | Length |
---|---|
Card Bin number | 1 byte(non ascii) |
Account Grouping Code | 1 byte |
Extended Service Code | 1 byte |
Processing Code | 1 byte |
AIIC | 6 byte |
For the Transaction, this field contains the TO/FROM data when a Funds Transfer is performed.
For the LogonEvent, this property contains a byte array of values: Currently assigned bytes are byte 0 = EFTPOS txns allowed, byte 1 = Agency txns allowed.
The array will be in the following order:
Index | Content |
---|---|
0 | Settlement |
1 | Pre-Settlement |
2 | Last-Settlement |
3 | Sub-Totals |
4 | Terminal Shift Totals |
5 | Reserved |
6 | Transaction Listing |
7 | SAF Totals |
8 | Mini-Statement |
9 | Detailed Cash Statement (STG Agency) |
10-15 | Reserved |
For the Status, this field will contain the Extra Status information which is used in PX328 Linkly systems and onward.
For a Transaction Request, if the TxnType is set to "K", this property will contain data for the PIN pad to use in processing the Enhanced PIN command.
This data is in the following format when the MessageType = "0" (status):
Name | Length | Description |
---|---|---|
SAF Count | 4 | SAF Count (if PIN pad has a SAF) |
Network Type | 1 | '1' = Leased, '2' = Dial-up |
Hardware Serial # | 16 | Actual Serial Number that is unique to the h/w |
Retailer Name | 40 | AS2805 Field 43 (if supported by host) |
Options Flags | 32 | These flags denote the support of various options within the terminal. |
Stand in Credit card Limit | 9 | Max limit allowed for stand-in on credit cards |
Stand in Debit card limit | 9 | Max Limit allowed for stand-in on debit cards |
Max number of stand-in transactions | 3 | |
Key-handling scheme | 1 | '0' = Single DES '1' = Triple DES |
Maximum Cash Out Limit | 9 | $$$$$$$cc |
Maximum Refund Limit | 9 | $$$$$$$cc |
Current CPAT version | 6 | |
Current Name table version | 6 | |
Terminal Comms Type | 1 | '0' = Cable, '1' = Infra-red |
Card Misread Count | 6 | |
Total # memory pages | 4 | |
# free memory pages | 4 | |
EFT Terminal Type | 4 | |
# applications in terminal | 2 | |
# lines on terminal display | 2 | |
Hardware inception Date | 6 | DDMMYY - Date that the hardware serial number was entered into this device. |
Supported Functionality Index:
Byte | Description |
---|---|
0 | Tipping |
1 | Pre-Auth |
2 | Completions |
3 | Cash-Out |
4 | Refund |
5 | Balance Enquiries |
6 | Deposits |
7 | Voucher Entry |
8 | MOTO Transactions |
9 | Auto Completions |
10 | Electronic Fallback |
11 | EMV |
12 | Training Mode |
13 | Withdrawal |
14 | Funds Transfer |
15 | Start Cash |
The Data in the following format is for MessageType = '1' (Terminal Info)
Name | Byte | Description |
---|---|---|
Eprom Type | 1 | 'Y' = 1Mb, 'X' = 2Mb |
Terminal Type | 2 | |
OS Version | 2 | |
OS CRC | 4 | |
BIOS Version | 2 | |
BIOS CRC | 4 | |
# Free Pages | 3 | |
# Applications | 2 |
For each application in the terminal the following will be present:
Name | Byte |
---|---|
Application Number | 2 |
Application Version | 2 |
Active Flag | 1 |
Corrupted Flag | 1 |
Number of code pages | 2 |
CRC for each code page | #pages * 2 |
Number of data pages |
The Data in the following format is for MessageType = '2' (CPAT)
Name | Byte |
---|---|
CPAT Version # | 6 |
# Offline Transactions allowed | 3 |
#card prefix entries | 3 |
For each CPAT entry, the following will be sent:
Name | Byte | Description |
---|---|---|
Prefix | 10 | |
Card Index | 2 | |
Card Bin# | 2 | |
Account Grouping Code | 1 | |
AIIC | 11 | |
Processing Code | 2 | |
DB card limit | 6 | |
CR card limit | 6 | |
ESC flag | 1 | Indicated if the Extended Service code table is to be used for this card. |
• The data is in the following format for MessageType = '3' (card name table)
Name | Byte |
---|---|
Card Table version # | 6 |
# card prefix entries | 3 |
For each card name entry, the following will be sent:
Name | Byte |
---|---|
Card Name | 20 |
Bin # | 2 |
Index | 2 |
• The Data is in the following format for MessageType = "4" (Offline Txns)
Name | Byte | |
---|---|---|
Reversal Present | 1 | True if the reversal is present in the SAF. The first entry will be the reversal. The remainder will be the SAF transactions. |
Number of entries | 3 |
For each entry in the SAF, the following will be present:
Name | Byte | |
---|---|---|
Processing Code | 6 | |
Transaction Amount | 12 | |
Transmission Date/Time | 2 | MMDDhhmmss |
POS entry mode | 3 | |
Card Seq # | 3 | |
Track2 Details | 40 | "card data", '=', "expiry date", "pad with end sentinels (?)" |
RRN | 12 | |
Auth # | 6 | |
Cash Out Amount | 12 |
Date
Date of transaction
Returned by Transaction
DateExpiry
Set before calling Transaction if a customer's card details are manually entered by the operator.
Used in conjunction with the Pan property.
Returned by Transaction.
Applies to Transaction.
DateSettlement
Contains the settlement date for the transaction in 'DDMMYYYY' format.
Used as input to Settlement with certain EFTPOS acquirers to specify the date for which
the settlement details are to be retrieved.
In this case DateSettlement should be blank if the current days totals are to be retrieved.
Returned by Transaction and Settlement
Applies to Settlement.
DisplayText
An array of strings containing the text to display.
EftPosNetwork
Indicates the network to which the PIN pad is connected.
Returned by Status.
EnableTip
Set before calling Transaction. If EnableTip is True before calling Transaction, the customer
receipt will have an area for a TIP to be entered. The POS should store all details related to Tip
Adjustments, so that the POS can send the tip adjustment to the Linkly system with the Transaction method (with TxnType = "T").
Applies to Transaction.
Note: Not supported by all acquirers.
InputData
The Input Data that is returned if the POS is implementing a custom display with Input using the Display Request, maximum 20 characters.
InputDataFieldKey
Note 1: This tag is set if the Authorise Key Flag is set. the Input Field Key values can be: - '1'= Normal ASCII input - '2'= Formatted Amount entry ($0.cc) - '3'= 2 decimal place formatted entry without dollar sign - '4'= Masked Password entry - '5'= Supervisor Request from pinpad - '6'= One key input from POS. As soon as one key is pressed on the POS, the key is sent to the pinpad It is mandatory that a POS support option '1' for this key type
KeyPressed
Indicates which key is to be pressed '0' for the CANCEL key '1' for the YES key '2' for the NO key '3' for the AUTH key
KVC
This property is used to hold the CVV (card verification value ) of the magnetic card stripe. This field is not mandatory.
LastTxnSuccess
Set to True if the last transaction was successful.
Returned by GetLastTransaction.
LineLength
The length of the lines in the display.
LoggedOn
Set to True if the PIN pad is in a logged on state, False if a logon is required. It is never necessary
for an application to use DoLogon to explicitly logon a PIN pad as auto-logons are performed.
Returned by Status.
LogonType
The type of logon to perform.
Value | Description |
---|---|
" " | Standard |
"4" | RSA logon |
"5" | TMSFull |
"6" | TMSParams |
"7" | TMSSoftware |
"8" | Logoff |
"1" | Diagnostics |
Merchant
Indicates the active merchant. (Reserved for future use) - Currently only merchant '00' is supported and setting this property to any other value will result in an error.
Value | Description |
---|---|
"00" | Default value to indicate EFTPOS |
"65" | AfterPay payment |
"66" | Alipay payment |
"67" | Humm payment |
"89" | ZipMoney payment |
Applies to Transaction, Logon, Settlement, and Status.
MessageType
A property to represent:
- The Message type returned by Transaction.
- The Subcode to select in a Status request.
- The resulting subcode in a Status
Nii
EFTPOS Network International Identifier.
Returned by Status.
Applies to ConfigMerchant.
Note: Not supported by all acquirers.
NumberOfLines
The number of lines in the display.
OkKeyFlag
Enables / disables the availability of the OK button on the display.
- 0 = No OK button
- 1 = OK button
Pan
Primary Account Number. Loaded with the customer PAN for manually entered transactions.
Only credit card details may be entered manually. Refer also to the properties DateExpiry, and PanSource.
Returned by Transaction (return format is acquirer dependent any may be in short 6...3 format).
Applies to Transaction.
PanSource
Indicates the source of the customer card details. The following values are valid for PanSource:
Value | Description |
---|---|
' ' (Space) | PIN pad will read card using internal card reader |
'K' | Manual Entry of card details using DateExpiry and Pan properties |
'S' | Track2 property contains application supplied card details read directly form a magnetic stripe reader (MSR) |
The following additional options are only used in MOTO (mail order/telephone order systems) where the pan source is a manually entered card. Use the above 'K' option for all other manual card options.
Value | Description |
---|---|
'0' | Internet originated transaction |
'1' | Telephone originated transaction |
'2' | Mail order originated transaction |
'3' | Customer present |
'4' | Recurring transaction |
'5' | Installment |
Applies to Transaction.
PinPadPort
The port to which the PIN pad is attached. On input, this property may be used to set the specific
PIN pad port to use. On output, it indicates the PIN pad port used for the transaction.
Applies to Transaction, Logon, Settlement
Note: Not supported by all acquirers.
PinPadSerialNumber
The hardware ID or Serial Number of the attached PIN pad.
Returned by StatusEvent.
PinPadVersion
The PIN pad software name and version (Up to 16 characters).
Returned by Status
PHN
Humm only. Customer phone number. Applies to Humm Invite
QueryCardType
The type of query to perform during a QueryCard request
Value | Description |
---|---|
"0" | Read card only |
"1" | read card + select account |
"5" | select account only |
"7" | pre-swipe |
"8" | Preswipe special |
Receipt
Formatted EFTPOS receipt information (Up to 2048 characters).
Returned by PrintReceipt, GetLastReceipt.
ReceiptAutoPrint
ReceiptAutoPrint | Description |
---|---|
"0" | Return all receipts to the POS in a receipt event. Only supported when async=true |
"1" | Not supported in the REST API |
"7" | Print all merchant/signature receipts from the PINpad printer, return all other receipts to the POS in the transaction/logon/settlement response |
"9" | Print all receipts from the PINpad printer |
Type
Type | Description |
---|---|
"M" | Request Merchant receipt copy |
"C" | Request Cardholder/Customer copy |
not set | defaults to Cardholder copy |
ResetTotals
This property should be set to True if the current totals should be reset when calling Settlement
with TxnType of shift Totals.
Applies to Settlement.
ResponseCode
A 2 character code returned by the bank indicating the result of the transaction.
Returned by all events.
ResponseText
A textual description of the bank response code (up to 20 characters).
Returned by all events.
ResponseType
The type of response that is being returned. This can be used to help sort responses sent to POS postback endpoints.
ResponseType |
---|
transaction |
logon |
settlement |
status |
querycard |
configuremerchant |
reprintreceipt |
display |
receipt |
RRN
Retrieval Reference Number this value is used to trace transactions.
SettlementReport
Formatted EFTPOS receipt information with settlement report (Up to 2048 characters).
Returned by Settlement, Settlement.
SettlementTotalsData
JSON array of settlement data for each card type settled. Each card record contains different amounts as follows:
- Card Name
- Purchase Amount
- Purchase Count
- Cash-Out Amount
- Cash-Out Count
- Refund Amount
- Refund Count
- Totals Amount
- Totals Count
Note: There will be one entry ("CardName": "TOTAL") in the array with totals of every card type settled.
Returned by Settlement.
SettlementType
Value | Description |
---|---|
"S" | Settlement |
"P" | Pre-Settlement |
"L" | Last Settlement |
"U" | Sub Totals or Summary Totals for ANZ |
"H" | Shift Totals or Subtotals for ANZ |
"I" | Txn Listing |
"M" | Start Cash |
"F" | Store and forward (SAF) totals report |
"D" | Daily cash statement (STG Agency) |
Stan
The Systems Trace Audit Number of the last transaction performed. (0-999999).
Returned by Transaction, GetLastTransaction, Logon.
StatusType
The type of status to perform
Value | Description |
---|---|
"0" | Standard |
"1" | TerminalAppInfo |
"2" | AppCPAT |
"3" | AppNameTable |
"4" | Undefined |
"5" | Preswipe |
SubCode
Used to control behaviour of methods:
Reprint receipt Indicates to reprint or retrieve (sent to POS)
- '1' = reprint receipt
- '2' = get last receipt
Get last transaction
- '0' = Standard request
Success
Boolean value indicating success or failure of relevant event/method call. E.g., if the request was of type transaction
, this flag indicates that the financial transaction (sale) succeeded.
Returned by all events.
Time
Transaction time returned by the acquirer. 'HHMMSS' format.
Returned by Transaction, Logon.
Timeout
EFTPOS transaction timeout. Determines the maximum amount of time that the PIN pad will wait
for a reply from the EFTPOS network. Value is from 10-255 seconds.
Returned by Status.
Applies to ConfigMerchant.
Note: Not all acquirers support modification of this value.
TotalsData
A totals record containing the locally stored terminal totals.
Length | Description |
---|---|
20 | Totals Description |
9 | Purchase Amount |
3 | Purchase Count |
9 | Cash-out amount |
3 | Cash-out count |
9 | Refund Amount |
3 | Refund Count |
1 | Total Sign |
9 | Total Amount |
3 | Total Count |
For a Mini Statement or a Store and Forward totals message, this field will contain the data sent back in those responses as defined by the bank.
For a Settlement with a txntype of "A" (Daily Cash Statement), this field will contain data to be sent to the terminal.
The format of this data is up to the terminal application that needs the data.
For each charge card:
Length | Description |
---|---|
11 | Card Name |
02 | Totals bin |
03 | Credit count |
09 | Credit amount |
03 | Debit count |
09 | Debit amount |
09 | Net amount |
Note: there is only one base record, but the number of charge cards is variable.
Returned by Settlement.
Track1
Contents of magnetic card track 1 or 3, if either is read by the PIN pad.
Returned by QueryCard.
TotalPurchaseCount
The total number of cheques that are to be processed by a STG Agency terminal Deposit function.
Applies to: Transaction.
Track2
Contents of magnetic card track 2. This property should be loaded by the application prior to calling
Transaction if the customer card is read by an application Magnetic Stripe Reader.
QueryCard returns the contents of track 2 for any card. The format of this field is acquirer dependent any may be in shorted format.
Returned by Transaction, QueryCard.
Applies to Transaction.
TxnFlags
The transaction flags that apply to the transaction
- "Offline" = 0/1
- "ReceiptPrinted" = 0/1
- "CardEntry" = '0' = unknown; 'S' = Swiped; 'K' = Keyed 'C' = Contactless Chip card 'E' = Contact Chip Card
- "CommsMethod" = '1' = P66, '2' = Argent, '3' = X25, '4'&'5' = HostEm, '6' = Non-EFT
- "Currency" = '0' = AUD, '1' = Converted Currency. (Transfer Data will contain Currency Code, Amount and Exponent if this is set).
- "PayPass" = '0' = Non Paypass '1' = Paypass.
- "UndefinedFlag6" = 0/?
- "UndefinedFlag7" = 0/?
TxnRef
Application supplied reference number up to 16 characters in length. TxnRef can contain any ascii characters between 32 and 127 (decimal).
Returned by Transaction, GetLastTransaction.
Applies to Transaction.
TxnType
This property should be set to indicate the type of transaction to be performed when calling Transaction or Settlement.
See Appendix E - Txn type
Appendix
Appendix A - Merchant Codes
Below are the Merchant codes that can be entered into a Merchant field, this will perform the request/method ONLY with the merchant specified, unless the merchant is '00'.
The Default merchant is '00' which is EFTPOS; for regular sales and requests use this Merchant code.
Note: Not all functions are supported by all merchants.
MERCHANT IDs & TID PREFIX FOR TPP DLL's
Merchant Code / Merchant HostId | Description |
---|---|
51 / WLT | Wishlist |
52 / GVX | Givex |
53 / BHN | Blackhawk |
54 / PPL | Paypal |
55 / ZOO | Zoo Republic |
56 / EPY | ePay (Not Used) |
57 / FDI | FDI |
58 / TBM | The Bored Monkey |
59 / WEX | WrightEXpress |
60 / RNT | Rental Payments / NAB Transact |
61 / HRS | Harris Scarfe |
61 / UNP | United Petroleum (Fuel Card/Shopper Docket) |
61 / FUS | Fusion Loyalty |
62 / QLG | Qantas Loyalty Gateway |
63 / EPY | ePay Universal Protocol |
64 / INC | Incomm |
65 / AFP | AfterPay |
66 / ALI | Alipay |
67 / ?? | Humm |
70 / OPN | OpenPay |
?? / ARK | Arkade Loyalty |
89 / ZMY | ZipMoney |
90 / TRU | TruRating |
99 / SLV | Slave |
Note: 61 can be used for any proprietary in-house extension that will never be deployed outside a given merchant.
Appendix B - Response Codes
Below are the response codes to a specific function. The codes are usually associated with a 'Response Text' that describe the result of the function performed.
E.g. 00 for a transaction is approved and its Response Text is "APPROVED ".
Common Response Codes
Response Code | Response Text | Additional Information |
---|---|---|
00 | APPROVED | Transaction / function completed successfully |
78, 79, XG | SYSTEM ERROR | ANZ Specific: Bank configuration issue |
97 | ALREADY SETTLED | PIN pad already has been settled |
B1 | PRINTER ERROR | Linkly setup to handle printing, but no printer defined |
BB / BY | Client/Pinpad Busy | Pinpad/client are processing |
N8 | SERVER ERROR | Invalid TID entered into the PIN pad |
P7 | COMMS ERROR | Comms issue with the PIN pad or the EFT server |
PF | Pinpad Offline | Pinpad is offline |
S0 | MODEM ERROR | (Should be CBA only) Generic Connection error - can't connect to the bank |
S7 | NO EFT SERVER | Linkly EFT Client is not connecting to EFT Server |
S8 | NO EFT SERVER | Error in the lines tab of the EFT Server |
TB | TMS REQUIRED | PIN pad needs to logon to TMS |
TF | INIT REQUIRED | PIN pad needs to be logged on |
TI | Operator Timeout | Input timeout |
TM | Operator Cancelled | Operator cancelled sale |
TX | Unable to Process | Reversal failed to process |
X0 | NO RESPONSE | Bank not responding to the terminal |
X0J | No Response | Message timeout |
X2 | System Error | Internal Error |
XG | Txn Not Supported | Txntype is not supported |
XT | CONFIG REQUIRED | PIN pad not configured with TID/MID |
Z0 | Modem Error | No connection from eftsrv |
Z5 | Power Fail | The PINpad has lost power/recovered from a powerFail |
ZB | PINPAD BUSY | ANZ Specific: PIN pad is not ready to accept transaction |
Developer-Specific Response Codes
Response Code | Response Text | Additional Information |
---|---|---|
00 | APPROVED | |
08 | Approved | |
A1 | Recursive Call | ActiveX busy |
A4 | Invalid Merchant | Merchant does not exist |
A7 | Internal Buffer | ActiveX message smaller than expected |
B2 | Unsupported Operation | |
B3 | Client Offline | Client not running / another program using client |
B4 | Internal Buffer | ActiveX message larger than expected |
B5 | Invalid Amount | POS sent wrong amount |
B6 | Invalid Dialog | |
B7 | Invalid TxnType | |
B8 | Invalid TxnRef | |
BY | PINpad Busy | |
D0 | Invalid AuthCode | POS sent wrong AuthCode |
E2 | No Previous Txn | |
TG | Display Error | POS display error |
TH | Printer Error | POS Printer Error |
Z0 | Modem Error | |
Z5 | Power Fail |
AppHub Response Codes
Response Code | Response Text | Description |
---|---|---|
99 | General Decline | Unexpected Error |
97 | Auth Error | Linkly Auth Error – Token is invalid |
H0 | Config Required | Lane Info/Third party host credentials are missing |
H1 | POS Format Error | POS has sent a wrong/missing field in the request |
HA | Invalid Amount | The Amount does not match Third party requirements |
HB | Insufficient Funds | The customer account does not have sufficient funds for the transaction |
HC | Host Format Error | The message is incorrect to the third party |
HD | Txn Cancelled | The txn has been cancelled |
HE | Bad Read | The card data/barcode provided is invalid |
HG | Host Auth Error | Authentication error from the third party |
HH | Txn Not Found | The txn reference does not exist on the third party system |
HI | Expired payment | The barcode/QR code/card has expired and cannot be processed |
HL | Host Internal Error | Internal error on the third party system |
HM | Activation Error | Third party activation error |
HN | Account In Use | The account/payment authenticator is already in use |
HQ | Account Funds Error | There is a funds error with the specified account |
HR | Already processed | The specific sale is already processed |
HS | Account Error | There is an issue with the customer account |
Appendix C - Purchase Analysis Data
{
...,
"PurchaseAnalysisData": {
"<TagName>": "<tagValue>",
"PAT": "1"
}
}
The purchase analysis data field allows the POS to send custom tag data to the pinpad.
It is also possible for the pinpad to return data to the POS in the field for certain messages.
The format for both send and receive of this data is the same. The value of each tag is dependent upon the pinpad application.
Only use this field if instructed by Linkly.
Byte Position | Field | Length | Description |
---|---|---|---|
THE FOLLOWING FIELDS ARE REPEATED FOR EACH TAG. | |||
0 | Tag Name | 3 | The name of the tag as defined by the pinpad |
2 | Tag Data Length | 3 | The length of the tag data to follow, not including the tag name and data length fields. ASCII and padded with leading zeros. |
5 | Tag Data | X | The tag data as defined by the pinpad |
Example 1:
Setting the property to "XXX006ABCDEF" would mean the pinpad receives a tag called 'XXX' with a length of 6 and the data 'ABCDEF'
Example 2:
Setting the property to "XXX001aYYY003ABCZZZ00245" the pinpad receives:
- A tag called 'XXX' with a length of 1 and the data 'a'
- A tag called 'YYY' with a length of 3 and the data 'ABC'
- A tag called 'ZZZ' with a length of 2 and the data '45'
Silent Card Not Supported In Transaction
- This tag allows the pinpad to silently end a sale if the card that is presented is not handled by the pinpad.
- The pinpad will exit with a response code indicating the card is not accepted, but the pinpad will not do any displays on the POS.
- TAG:
- SLT0011
- Direction
- POS --> Linkly
- POS --> Linkly
- Banks Supported:
- CBA
- NAB?
- CBA
- Transaction Types Supported:
- Transaction
- Transaction
Limit Account Selection
- This tag instructs the pinpad to limit the accounts that are allowed for this sale. It can be used by the POS to stop a customer selecting a particular account (even if the bank rules allow it)
- TAG:
- LAS
- Where a = CHQ, b = SAV, c = CR
- Values are '0' for not allowed and '1' for allowed
- e.g. LAS003001 would only allow credit accounts
- LAS
- Direction
- POS --> Linkly
- Banks Supported:
- CBA
- CBA
- Transaction Types Supported:
- Transaction
- Transaction
Operator Display Prompts
- Optional return tag on the Display Event or Transaction Response that returns additional operator display information
- TAG:
- ODP
- ODP
- Direction
- POS --> Linkly
- Banks Supported:
- None. Custom add-on DLL required
- None. Custom add-on DLL required
- Transaction Types Supported:
- Display Events
- Transaction Events
- Display Events
Field 48 Data
- Data to be sent to the bank in Field 48
- TAG:
- F48
- F48
- Direction
- POS --> Linkly
- Banks Supported:
- ANZ
- ANZ
- Transaction Types Supported:
- All
- All
Myer Specific
- Myer Gift Card specific tags for ANZ to handle.
- TAG:
- MYR
- MYR
- Direction
- POS --> Linkly
- Banks Supported:
- ANZ
- ANZ
- Transaction Types Supported:
- All
- All
Tip value passed from POS
- Tip value collected by POS solution, only needed if the POS wishes to supress the tip collection by the Linkly solution. The value to be included is to be numeric and 4 characters long.
- TAG:
- TIP
- TIP
- Direction
- POS --> Linkly
- Banks Supported:
- All
- All
- Transaction Types Supported:
- Purchase
- Purchase
Amount tag
- Tag used to pass the outstanding total, used when transactions are performed that include incremental charges or additional values were added during the transaction. Numeric 9 digits
- TAG:
- AMT
- AMT
- Direction
- Linkly --> POS
- Banks Supported:
- All
- All
- Transaction Types Supported:
- All
SKU tag
- This tag is to contain the Basket ID that applies to this transaction.
- TAG:
- SKU
- Directionn
- POS --> Linkly
- Banks Supported:
- All
- Transasaction Types Supported:
- All
Unique Card Identifier
- The UCI tag may be returned to provide a unique hashed value of a card that can be used by the POS to identify the same card in future sales.
- The UCI will only be unique when returned from the same banks pinpad.
- TAG:
- UCI{hash value}
- Eg UCI1234567890
- UCI{hash value}
- Direction
- Linkly --> POS
- Banks Supported:
- None!
- None!
- Transaction Types Supported:
- All.
Available Balance
- Balance available after a sale
- TAG:
- ABA
- ABA
- Direction
- Linkly --> POS
- Banks Supported:
- ANZ
- ANZ
- Transaction Types Supported:
- Transaction Response
- Transaction Response
Cleared Funds Balance
- Balance of cleared funds.
- TAG:
- CFD
- CFD
- Direction
- Linkly --> POS
- Banks Supported:
- ANZ
- ANZ
- Transaction Types Supported:
- Transaction Response
- Transaction Response
Operator Reference
- The operator reference.
- TAG:
- OPR
- OPR
- Direction
- POS --> Linkly
- Transaction Types Supported:
- Transaction Requests
- Transaction Requests
Unique Identifier
- The unique identifier for the transaction, this should be unique for the given transaction.
- TAG:
- UID
- UID
- Direction
- POS --> Linkly
- Transaction Types Supported:
- Transaction Requests
- Transaction Requests
POS Name
- The POS name, this must match the name used for the Linkly accreditation.
- TAG:
- NME
- NME
- Direction
- POS --> Linkly
- Transaction Types Supported:
- Transaction Requests
- Transaction Requests
POS Version
- The POS version.
- TAG:
- VER
- Direction
- POS --> Linkly
- Transaction Types Supported:
- Transaction Requests
- Transaction Requests
POS Vendor ID
- The POS vendor ID, this must match the ID supplied by Linkly during accreditation.
- TAG:
- VND
- VND
- Direction
- POS --> Linkly
- Transaction Types Supported:
- Transaction Requests
- Transaction Requests
POS Capabilities Matrix
- The POS capabilities matrix:
- Byte 1 - 1=POS has barcode scanner, 0=No barcode scanner
- TAG:
- PCM
- PCM
- Direction
- POS --> Linkly
- Transaction Types Supported:
- Transaction Requests
- Transaction Requests
Purchase REF
- Reference of the extension purchase. It's returned in "PurchaseAnalysisData" of Transaction Response. It's used to refund an extension transaction.
- TAG:
- REF
- REF
- Direction
- Linkly --> POS
- POS --> Linkly
- Transaction Types Supported:
- Purchase
- Refund
- Notes
- Returned by AfterPay Purchase as AfterPay Order Id
- Returned by Alipay Purchase as Alipay Trade Number
- Returned by Humm Purchase as Humm Purchase Number
- Returned by ZipMoney Purchase as ZipMoney Order Id
- Returned by AfterPay Purchase as AfterPay Order Id
Host Response Code
- The host supplied response code, this can be useful for providing more detailed transaction information to the customer and merchant.
- TAG:
- HRC
- HRC
- Direction
- Linkly --> POS
- Transaction Types Supported:
- Transaction Responses
Host Response Text
- The host supplied response text, this can be useful for providing more detailed transaction information to the customer and merchant.
- TAG:
- HRT
- HRT
- Direction
- Linkly --> POS
- Transaction Types Supported:
- Transaction Responses
Appendix D - Application Codes
- These codes allow the POS to direct a command to a specific application.
- They should only be used in consultation with Linkly.
Code | Application |
---|---|
'00' | EFTPOS |
'01' | AGENCY |
'02' | Linkly Configurable Application |
'03' | Gift Card |
'04' | Fuel |
'05' | Medicare |
'06' | Amex |
'07' | Cheque Auth |
Appendix E - TxnType
Description:
This property should be set to indicate the type of transaction to be performed when calling DoTransaction or DoSettlement.
Values | Application |
---|---|
B | Balance Enquiry. |
P | Purchase, Purchase & Cash |
R | Refund |
C | Cash Only |
D | Deposit The deposit amount is placed in AmtPurchase (excluding STG Agency terminal) St George Agency terminal note: AmtPurchase contains the cheque amount AmtCash contains the cash amount to deposit TotalPurchaseCount contains the total number of cheques to deposit. |
L | Completion |
M | Auto-Completion The following properties must be set prior to this call: - rrn (as returned in original request) - auth code (as returned in original request) - amtpurchase. - txnref - PANSource - track2 (as returned in original request) - AccountType(as returned in original request) |
V | Voucher Entry The following properties must be set prior to this call: AccountType ('0' = Savings, '1' = Cheque, '2' = Credit, '3' = Account 1, '4' = Account 2, '5' = Account 3, '6' = Account 4, '7' = Account 5) - Date (DDMMYY) - Time (HHMMSS) - rrn (as returned in original request) - auth code (as returned in original request) - amtpurchase. - txnref - PANSource = 'K' - pan (contents of the PAN) - dateExpiry (MMYY) - CsdReservedString3 (Card Sequence Number. Normally 2 digits) - DataField (The original transaction type. 'P', 'C', 'R', 'D' ) |
T | Tip-Adjustment The following properties must be set prior to this call: - rrn (as returned in original request) - auth code (as returned in original request) - amtpurchase. - txnref - PANSource - track2 (as returned in original request) - dateExpiry (if manually keyed) - Pan (if manually keyed) - AccountType (as returned in original request) |
W | Withdrawal The withdrawal amount is to be set in the amtpurchase property. |
F | Funds Transfer The amount to transfer is to be placed in the amtpurchase property |
O | Order Request An order request will ask the bank to send something to the customer (eg statement, cheque book, etc) |
H | Mini Transaction History Retrieve recent transaction details based upon the customer's card details |
X | Get and Authorise a PIN Ask the customer for their PIN, and authorise it with the bank |
K | Enhanced PIN command This will perform an enhanced PIN command as defined by the bank PIN pad The following properties can be set prior to this call: - amtpurchase. - txnref - PANSource - track2 (as returned in original request) - dateExpiry (if manually keyed) - Pan (if manually keyed) - AccountType (as returned in original request) - DataField |
I | Void |
Settlement Types
- 'S' Settlement
- 'P' Pre-Settlement
- 'L' Last Settlement
- 'U' Sub Totals or Summary Totals for ANZ
- 'H' Shift Totals or Subtotals for ANZ
- 'I' Txn Listing
- 'M' Start Cash
- 'F' Store and Forward (SAF) Totals report
- 'D' Daily Cash Statement (STG Agency)
Returned by TransactionEvent and SettlementEvent.
Applies to DoTransaction and DoSettlement.
Note: Not all TxnTypes are supported by all acquirers.
Document Version
Version | Date | Revisions |
---|---|---|
1.0.4 | 18 August 2022 | - Updating POS Support email to [email protected] |
1.0.3 | 01 August 2022 | Added settlement report example and adapted Pascal case for keys in json |
1.0.2 | 23 June 2022 | - Removing Deprecated TxnType 'G' (MOTO); Use PanSource to perform MOTO transactions |
1.0.1 | 31 May 2022 | - Updating jquery version - moving Document Version section to end of document |
1.0.0 | 16 May 2022 | - Removed pre-authorisation and bar tab |
